Detailed Description
This is XNK-011Wooden Cabin Passenger Elevator With Competitive Price
SYNEY ELEVATOR is professio
nal factory producing elevator, escalator and moving walk in China. Our main products includepassenger elevator, freightelevator, goods lift, panoramicelevator, observation lift, hospital bedelevator, villa home lift, escalator, waving escalator and moving walk.etc.
| Capacity | Speed | Cabin Size | Shaft Size | Max Travel | Min Floor H |
| DL | V | Width | Depth | Open | Width | Depth | Pit | OH | MRH | Max R | Min D |
| (kg) | (m/s) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (m) | (m) |
| 630 | 1 | 1400 | 1150 | 800*2100 | 2000 | 1800 | 1500 | 4500 | 2300 | 50 | 2.7 |
| 1.5 | 1600 | 4600 | 70 |
| 1.75 | 1700 | 4700 | 90 |
| 800 | 1 | 1350 | 1400 | 800*2100 | 2000 | 2100 | 1500 | 4500 | 2300 | 50 |
| 1.5 | 1600 | 4600 | 70 |
| 1.75 | 1700 | 4700 | 90 |
| 2 | 2050 | 2100 | 1900 | 5000 | 2500 | 100 |
| 2.5 | 2100 | 5200 | 120 |
| 1000 | 1 | 1600 | 1400 | 900*2100 | 2200 | 2100 | 1500 | 4500 | 2300 | 50 |
| 1.5 | 1600 | 4600 | 70 |
| 1.75 | 1700 | 4700 | 90 |
| 2 | 2300 | 2100 | 1900 | 5000 | 2500 | 100 |
| 2.5 | 2100 | 5200 | 120 |
| 1150 | 1 | 1800 | 1400 | 1000*2100 | 2400 | 2100 | 1500 | 4500 | 2300 | 50 |
| 1.5 | 1600 | 4600 | 70 |
| 1.75 | 1700 | 4700 | 90 |
| 2 | 2500 | 2150 | 1900 | 5000 | 2500 | 100 |
| 2.5 | 2200 | 5200 | 120 |
| 1350 | 1 | 2000 | 1500 | 1100*2100 | 2600 | 2200 | 1500 | 4500 | 2500 | 50 |
| 1.5 | 1600 | 4600 | 70 |
| 1.75 | 1700 | 4700 | 90 |
| 2 | 2700 | 2250 | 1900 | 5000 | 100 |
| 2.5 | 2200 | 5200 | 120 |
| 1600 | 1 | 2000 | 1700 | 1100*2100 | 2600 | 2400 | 1500 | 4600 | 2500 | 50 |
| 1.5 | 1600 | 4700 | 70 |
| 1.75 | 1700 | 4800 | 90 |
| 2 | 2700 | 2450 | 1900 | 5100 | 100 |
| 2.5 | 2200 | 5300 | 120 |
Standard functions
| No. | Function | No. | Function |
| 1 | Collective Selective | 24 | Door lock stop when running |
| 2 | Close door interrupted auto return | 25 | Level adjust |
| 3 | Overload Alarm | 26 | Auto stop |
| 4 | Full load bypass drive | 27 | Floor signal auto-amend |
| 5 | Motor overheat protect | 28 | Door switch protect |
| 6 | Machine room emergency electric operation | 29 | Anti-slid protect |
| 7 | Top floor terminal protect | 30 | Door switch button |
| 8 | Car display | 31 | Landing door/car door lock at certain period |
| 9 | Reset Running | 32 | Landing door open at psent floor |
| 10 | Car emergency lightening | 33 | Speed feedback |
| 11 | Car top inspection | 34 | Reverse running protect |
| 12 | Door close time extending protect | 35 | Shaft position self study |
| 13 | 5 part interphone | 36 | Brake feedback inspection |
| 14 | Reverse direction register cancel | 37 | Standby switch |
| 15 | Car Alarm bell | 38 | Car lightening and fan control |
| 16 | Fault register cancel | 39 | Fault self-diagnosis |
| 17 | CPU self protect | 40 | Running direction signal |
| 18 | Auto level | 41 | Fault history record |
| 19 | CAN communication protect | 42 | Service floor setting |
| 20 | Fault auto level | 43 | Floor display setting |
| 21 | Level switch protect | 44 | Auto return main floor |
| 22 | Low speed protect | 45 | Auto return main floor when fire alarm |
| 23 | Shaft self-study diagnosis | 46 | Contactor feedback detection |

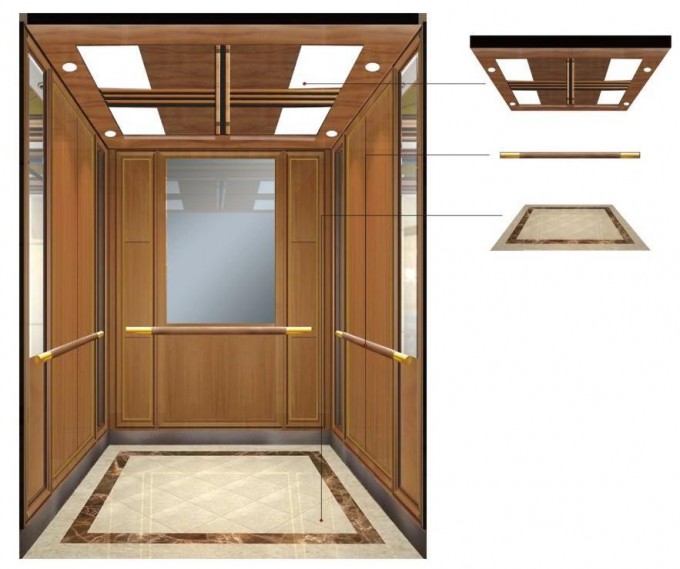

Product Image
