Vvvf Passenger Elevator Without Lift Machine Room

BSDUN BRAND ELEVATOR

BSDUN machine roomless passenger elevator with its compact design and high performance greatly meets various requirements of elevators in public transportation facilities, special buildings and residential houses. Being wholly installed in the hoist way, BSDUN machine roomless passenger elevator saves the space of machine room to lower the construction cost and make the architectural design more flexible and adaptable.Elevators/escalator we offer and export: machine room passenger elevator; machine roomless passenger elevator; stretcher elevator; observation/sightseeing elevator; home elevator; hospital elevator; freight/goods elevator; escalator/moving walkLoad(kg): 320; 400; 630; 800; 1000; 1250; 1600; 2000; 3000; 5000Speed(m/s): 0.25; 0.4; 0.5; 0.6; 0.63; 1.0; 1.5; 1.6; 1.75; 2.0; 2.5; 3.0Advanced technology:1. energy-regenerating technology: up to 28% energy consume of elevator running can be recycled and rused.2. special frequeny inverter for high efficient vector elevator; it can calculate the time automatically and fix a position within the shortest time to reduce the crawing time to make the elevator run more efficiently and smoothly.3. gearless permanent magnetic synchronous traction machine.4. group control system and remote monitoring function.5. VVVF door operator system

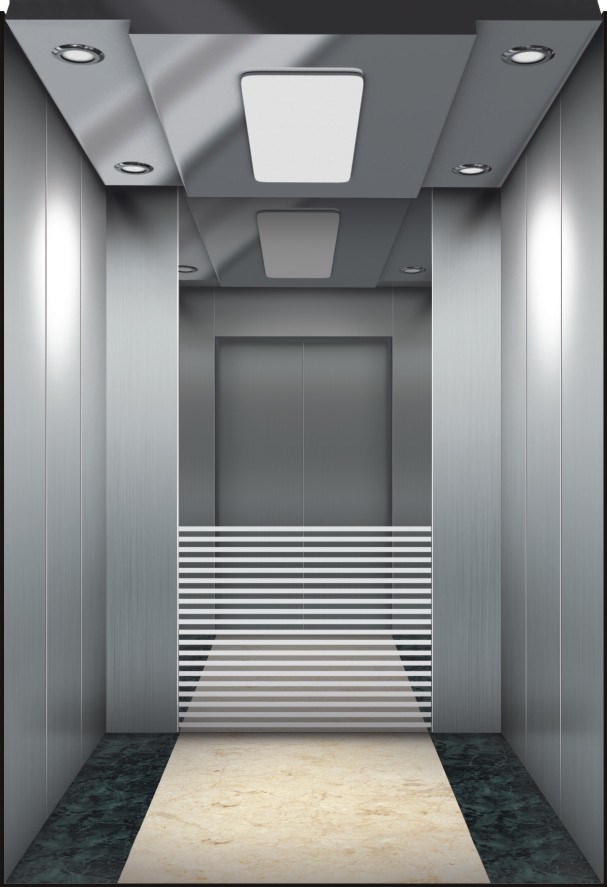

Passenger elevator's decoration:
Ceiling:Mirror stainless steel base plate with LED lights.
Car wall:
Center plate: Mirror etched stainless steel and hairline stainless steel with golden recess
The auxiliary plate: Hairline stainless steel
Floor: PVC


PARAMETERS:

Load (kg)	Speed (m/s)	Car net size (Width×Depth) (mm)	Door opening size (Width×Height) (mm)	Hoistway size (Width×Depth) (mm)	Pit depth (mm)	Overhead height (mm)
630	1.0	1200×1300	800×2100	2100×1900	1600	4400
	1.5				1700	4500
	1.75				1800	4600
800	1.0	1400×1350	800×2100	2300×2000	1600	4400
	1.5				1700	4500
	1.75				1800	4600
1000	1.0	1400×1600	900×2100	2300×2100	1600	4400
	1.5				1700	4500
	1.75				1800	4600
1250	1.0	1600×1800	1100×2100	2600×2400	1600	4500
	1.5				1700	4700
	1.75				1800	4700
1600	1.0	1800×1900	1100×2100	2800×2500	1600	4600
	1.5				1700	4700
	1.75				1800	4800
