Trumpf Passenger Elevator with Arch Design

Parameter

Load(kg)	NO. of persons	Speed(m/s)hh	Car opening size	Door open type	Car net size(mm)	Shaft inside dimension	Machine room size
			Width×Height(mm)			width×depthpitOH pp	width×Height
450	6	1.0/1.5/1.75	800×2100	Center opening	1850×1700	1850×17001500/16004500	1850×1700
630	8	1.0/1.5/1.75	800×2100	Center opening	1950×1800	1950×18001500/16004500	1950×1800
800	10	1.0/1.5/1.75	800×2100	Center opening	2000×2050	2000×20501500/16004500	2000×2050
1000	13	1.0/1.5/1.75	900×2100	Center opening	2200×2200	2200×22001500/16004500	2200×2200
1250	16	1.0/1.5/1.75	1100×2100	Center opening	2400×2350	2400×23501500/16004500/4700	2400×2350
1350	18	1.0/1.5/1.75	1100×2100	Center opening	2400×2450	2400×24501500/16004500/4700	2400×2450

TRUMPF small machine room elevator brings about the more compact machine room layout
through small traction machine and thin control cabinet. It fulfills small machine room.
Compared with traditional elevator with machine room, it effectively reduces machine room
height and saves machine room area.

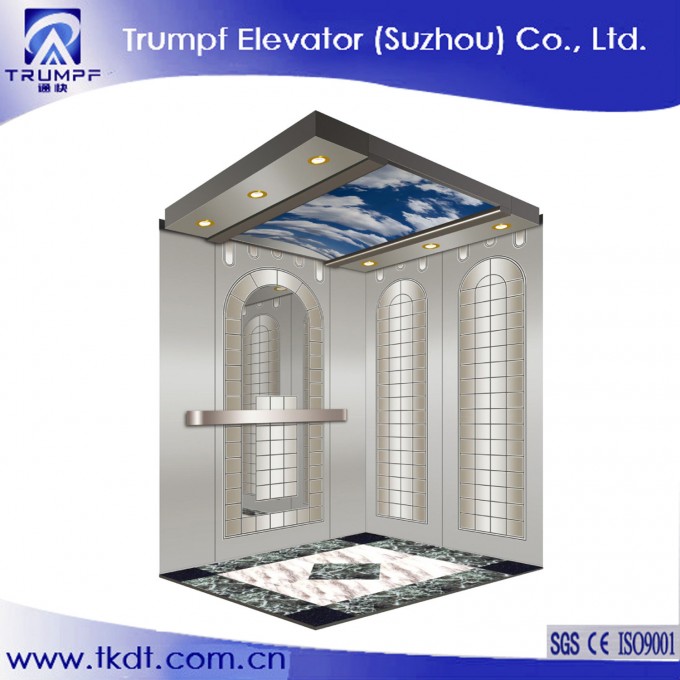

Decoration

Model	TK-K009
Ceiling	Mirror side frame, central image arch, soft lighting design of LED on stainless steel base plate on both sides
Car wall	Mirror, etched, hairline, irregular grain
Handrail	Stainless steel flat handrail
Floor	PVC

Packing &Delivery
Using strong exporting plywood cases, suitable for long distance transportation and well protected
against dampness, moisture, shock and rust.


Company profile
TRUMPF Elevator (Suzhou) Co., Ltd. is located in Suzhou City of Jiangsu Province, China in
core area of Changjiang River Economic Zone. It is situated along the beautiful Taihu Lake.
The registered capital of the company is RMB 200 million yuan, and the plant area is more
than 15000 square meters. It is amodern enterprise specializing in the research and
development, manufacture, sale, installation and maintenance of elevators.


Our Exhibition
We have held exhibitions in many countries, such as Iran, Egypt, Germany, Russia, etc.,
and the upcoming Saudi Arabia exhibition.

Our Cetification


FAQ

Q1: Are you trading company or manufacturer?
A1: We are manufacturer.

Q2: How long is your delivery time?
A2: Generally it is 15-20 days if the goods are in stock or it is 20-45 days if the goods are notin stock, it is according to quantity.

Q3: What is your terms of payment?
A3: T/T or L/C at sight.

Q4: What is the warranty period.
A4: 12 months after shipment.

Q5: Where are your factory? Can you pick us at airportto visit you?
A5:Yes. We are in Jiangsu. Yes, you can, we are very welcoming.
