New Style Disabled Passenger Lift

New Style Disabled Passenger Lift

Product introduction:
1. Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.

2. It can be directly installed into the ground without architectural supporting pits and easy to operate.

3. Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.

4. Emergency Descending: When there is no power or malfunctions, manually descend the device
5. It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.

6. This machine max. Lifting height is 6000mm


If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.

Parameters for reference:

Name	Disabled lift platform
Model:	VWL
Loading capacity	300kg
Travel height	1500mm
Platform size	1430*900mm/customized
Speed	80mm--100mm/s
Overload	Protection over current relay
Control voltage	24V/DC
Power Output	2.2KW
Power Input	220V/50HZ/or customized local power
Drive System	Hydraulic/Screw
Control Mode	Button Inching Switch
Mainly material:
Platform	Non-skidDiamond AluminumPlatform
Lead rails	Aluminum extruded sections
Hydraulic cylinder	φ80*1pcs
Chain	16A
Surface material	Aluminum plate with plastic spraying finished
Controls parts	Schneider/Delixi
Installation	Non-pit installation
Working Condition	Both indoor and outdoor
Safety device	High pssure hydraulic oil pipe with double steel net
	Explosion proof value for cylinder
	Emergency stop button
	Emergency down valve when power failure
	The operation must be stopped immediately the safety edge meets obstacles during operation
	Machine can working when door completely closed
	Upper final limit safety switch
Packing	Steel frame with plywood cases
Certificate	CE/ISO/SGS/CCC

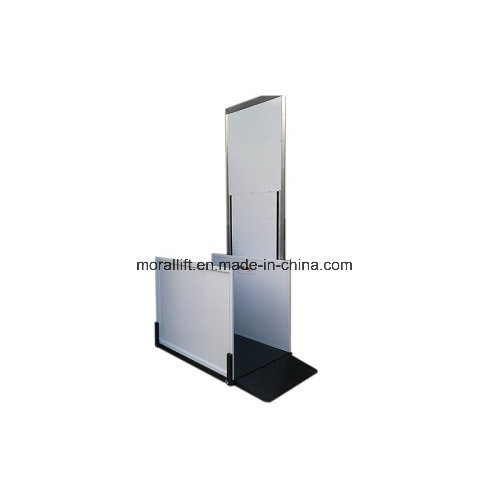

Product photos:





Our service:
1.Allthemachineswillbefulltestedbeforeshipment
2.Thetotalmachineguaranteeis12months
3.24Hourstechnicalsupport,email,telephoneorvideoonline
4.User-friendlyenglishmanualformachineusingandmaintaining
5.Severalsetswearingpartswillbefreeforyou

Anythingwecandoforyouplsfeelfreetocontactus.

Yourinquirywillbehighlyappciated.
