Mrl Passenger Elevator with Pm Gearless Motor (LL-012)

Product Description:This is LL-012 MRL Passenger Elevator with PM Gearless Motor

SYNEY ELEVATOR is professional factory producing elevator, escalator and moving walk in China. Our main products includepassenger elevator, freightelevator, goods lift, panoramicelevator, observation lift, hospital bedelevator, villa home lift, escalator, waving escalator and moving walk.etc.

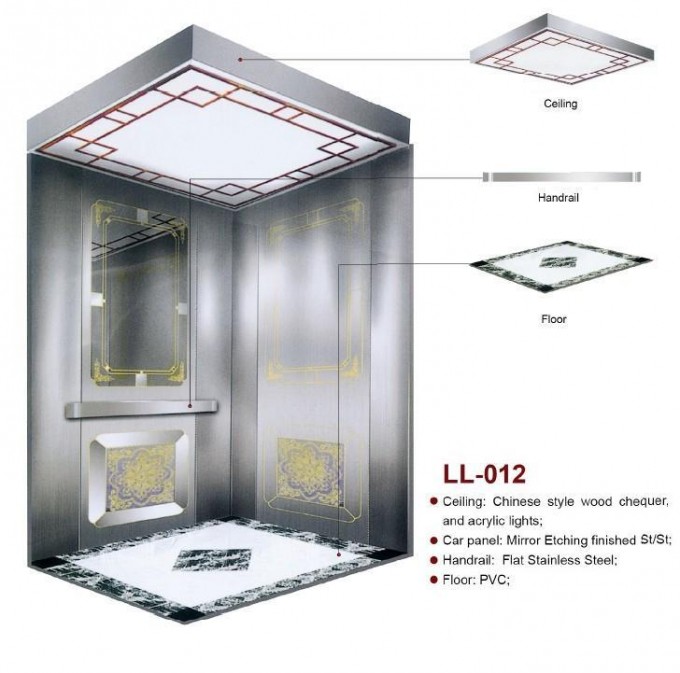

Decoration:
Ceiling: Chinese style wood chequer, and acrylic lights
Cabin panel: mirror etching finished stainless steel
Handrail: flat stainless steel
Floor: PVC

Capacity	Speed	Cabin Size			Shaft Size					Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	OH	MRH	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)
630	1	1400	1150	800*2100	2000	1800	1500	4500	2300	50	2.7
	1.5						1600	4600		70
	1.75						1700	4700		90
800	1	1350	1400	800*2100	2000	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2050	2100	1900	5000	2500	100
	2.5						2100	5200		120
1000	1	1600	1400	900*2100	2200	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2300	2100	1900	5000	2500	100
	2.5						2100	5200		120
1150	1	1800	1400	1000*2100	2400	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2500	2150	1900	5000	2500	100
	2.5						2200	5200		120
1350	1	2000	1500	1100*2100	2600	2200	1500	4500	2500	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2700	2250	1900	5000		100
	2.5						2200	5200		120
1600	1	2000	1700	1100*2100	2600	2400	1500	4600	2500	50
	1.5						1600	4700		70
	1.75						1700	4800		90
	2				2700	2450	1900	5100		100
	2.5						2200	5300		120
