Detailed Description
Product Use Range:
Independent Villa/ Newly-built Installation/ Townhouse/ Reinstallation to the Old House/ Indoor Installation
Advantages:
1. Efficient use of building space
2. Easy installation and short co
nstruction period
3. High efficient and energy saving
4. Wheelchair accessibility
5. Humane operation function
6. Co
nvenient and safe maintenance and inspection
7. Smart security elevator
Specification of Gantry Structure:
| Loading Capacity (kg) | Speed (m/s) | Cabin (D*E*H) | Shaft (A*B) | Entrance (LL*HH) | Max. Lift Height (mm) |
| 260 | 0.4 | 800*1000*2100 | 1400*1400 | 700*2000 | 15000 |
| 320 | 0.4 | 900*1100*2100 | 1500*1500 | 800*2000 | 15000 |
| 400 | 0.4 | 900*1200*2100 | 1600*1600 | 800*2000 | 15000 |
Specification of Backpack Structure:
| Loading Capacity (kg) | Speed (m/s) | Cabin (D*E*H) | Shaft (A*B) | Entrance (LL*HH) | Max. Lift Height (mm) |
| 260 | 0.4 | 800*1000*2100 | 1400*1400 | 700*2000 | 12000 |
| 320 | 0.4 | 900*1100*2100 | 1500*1500 | 800*2000 | 12000 |
| 400 | 0.4 | 900*1200*2100 | 1600*1600 | 800*2000 | 12000 |
WHY CHOOSE US?
Save Cost: we will combine the best cost-effective products for customer service.
Save Time: well-educated sales team will provide professio
nal p-sale and after-sale service.
Worry Free: experienced engineers can help you with design solution, mechanical drawing and technical support.

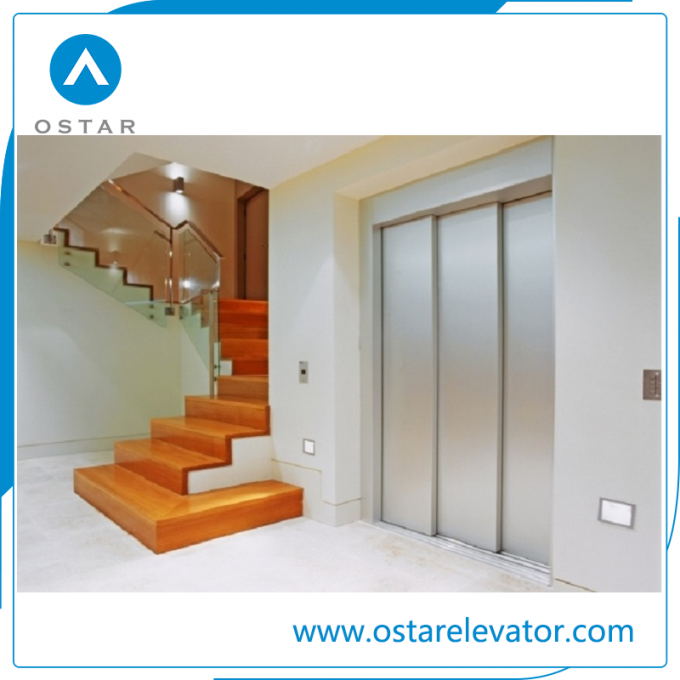

Product Image
