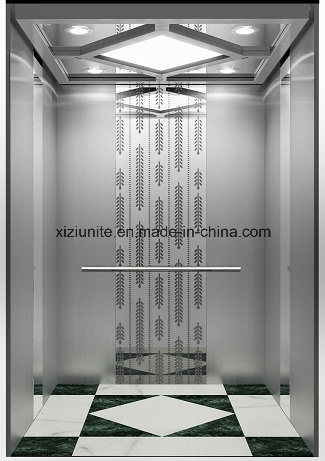

Passenger Elevator Un-Victor Mrl III

UN-VICTOR MRL Passenger elevator is the first developed by XIZI Elevator with the concept of machine rooless. Compared with traditional elevator with machine room, the compact structure makes a clear advantage of construction. Since it saves room and greatly reduces construction cost, it is an ideal choice of developers and investors.

UN-VICTOR MRL
Main specification:
Capacity: ≤ 1000kg
Speed: 1.0m/s-1.75m/s
Machine: UNT09
Controller: U-Con L2000
Door operator: U-DF01 VVVF door operator
Car operation panel: U-CF100
Door protection: Infrared curtain
FUNCTION
Public Safety of passenger
1 Light curtain
2 ANS-Anti-Nusisance Car Call Protection
3 Intelligent anti-nuisance function
4 LNS-Lodad Non Stop
5 LWS-Overload Protection
6 Button anti-adhesion protection
7 Door closing torque protection
8 ELTU-Emergency light
9 ALARB-Alarm Bell
10 DTC-Door Time Protection Close
11 DTC-Door Time Protection Open
12 Door panels forced cloding upon gravity
13 EFP-Emergency Fireman operation
14 EFO Reservation
15 Fire feedback
16 Local leveling
17 Fire feedback
18 ARD-Automatic Rescue Device
19 Earthquake operation
20 Core closing anti-function (1.0-2.5m/s)
21 Door opening prohibition outside door zone
Basic functions of elevator
1 Floor display
2 FCL-Full collective operation
3 Dynamic display
4 CBC-cancel error calls
5 Autonmatic elimination of reverse command
6 Door re-opening
7 DHB-Door Hold Button
8 Locking at main landing
9 Braille button
10 Time peak
11 Hall arrival gong
12 Car arrival gong
13 Auxiliary operation panel
14 Operation panel for handicapped
15 Automatic return to main landing
16 Machine room sound-proof and vibration-proof device
17 Group Control
System safety
1 Contact detection and protection on safety contactor
2 Brake feedback&detection
3 Independent dual brake
4 Running time limiter
5 Overspeed protection
6 Low speed protection
7 OHT-Drive overheat
8 Two way monitoring door lock
9 Safety circuit fault protection
10 Main control CPU WDT protection
11 HOP Checking
Basic structures
1 frame-type box
2 Elastic soundproof car body
3 Car top spring damping
4 installtion of beam-tyoe door operator
