Complete Renew Package for Passenger Elevator

Isuzu Elevator and Escalator Modernization
ISUZU, working together with its clients develops customized solutions for the modernization of the older elevators combining the cost effectiveness with the highest quality outcome.

The ISUZU LIFT MODERNIZATION SOLUTIONS cover:
• Comfortable transport with emphasis on the passengers' safety
• Energy savings
• High performance levels
• Superb compatibility
• Minimization of the maintenance costs
• Modern design
With respect to the increasing special needs of people with limited mobility, ISUZU proposes a series of solutions that aim at improving quality of life and transportation in buildings with old elevators. The solutions proposed are fully compliant with the CEN / TS 81-82:2008 European Standard, which recognizes 4 features that need to be examined in all old elevators to ensure their smooth, and above all, safe use by everyone, regardless of mobility problems. These 4 features are the following:
• Elevator entrances - doors
• Cabin - dimensions and equipment
• Operating panels in the cabin and on each landing, and
• Quality of motion and stopping pcision accuracy of the cabin.
Modernization Details
According to different projects' situations, ISUZU can provide complete modernization solutions which cover from design, manufacture, delivery to guidance for customers' installation and debugging. Comphensive support can be supplied through the whole process of modernization. The following mechanical and electrical parts for customers 'modernization can be designed and produced by us.
ISUZU, working together with its clients develops customized solutions for the modernization of the older elevators combining the cost effectiveness with the highest quality outcome.

The ISUZU LIFT MODERNIZATION SOLUTIONS cover:
• Comfortable transport with emphasis on the passengers' safety
• Energy savings
• High performance levels
• Superb compatibility
• Minimization of the maintenance costs
• Modern design
With respect to the increasing special needs of people with limited mobility, ISUZU proposes a series of solutions that aim at improving quality of life and transportation in buildings with old elevators. The solutions proposed are fully compliant with the CEN / TS 81-82:2008 European Standard, which recognizes 4 features that need to be examined in all old elevators to ensure their smooth, and above all, safe use by everyone, regardless of mobility problems. These 4 features are the following:
• Elevator entrances - doors
• Cabin - dimensions and equipment
• Operating panels in the cabin and on each landing, and
• Quality of motion and stopping pcision accuracy of the cabin.
Modernization Details
According to different projects' situations, ISUZU can provide complete modernization solutions which cover from design, manufacture, delivery to guidance for customers' installation and debugging. Comphensive support can be supplied through the whole process of modernization. The following mechanical and electrical parts for customers 'modernization can be designed and produced by us.

PART NO.IN LAYOUT DRAW.	ITEM	SPECIFICATION
I Mechanical Parts
1.1	Traction Machine	VVVF Geared Machine or PM Gearless Machine
1.2	Traction Machine Bed Set	Made for the replaced Traction Machine
1.3	Speed Governor	ISUZU Standard
1.4	Pulley Sheave	For above traction machine
1.5	Wire Rope	For above traction machine & speed governor

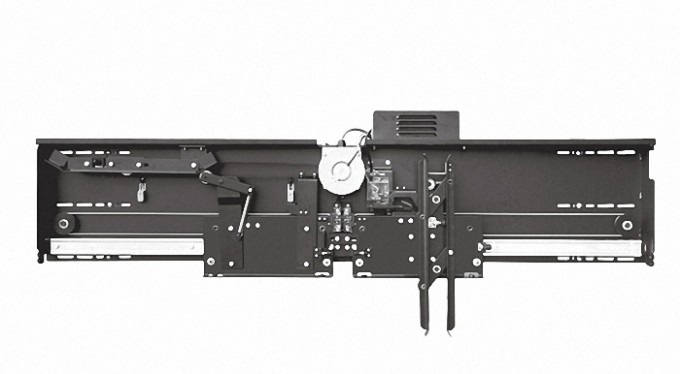

1.6	VVVF car door system	Replace the existing old door system
1.7	Landing Door System
II Electrical Parts
2.1	Complete Control Cabinet	VVVF in Serial or Parallel system, 2.2-37 KW, 200V/400V, up to 4m/s speed
2.2	Encoder with Cable	Installed according to the Traction Machine
2.3	Car Top Board	Installed in the Car Top Inspection Box according to ISUZU controller
2.4	Display Board for COP and LOPs	Installed in the COP and LOPs based on ISUZU controller
2.5	Car Instruction Board	Installed in the based on ISUZU controller
2.6	COP	Dot Matrix, blue LCD display
2.7	LOPs
2.8	Car Top Inspection Box	Isuzu Standard
2.9	Pit box	Isuzu Standard
2.10'	Leveling Photoelectric Switch	DC24V Normally Open
2.11	Limit Switch	Normally Close
2.12	All Cable	All Plug in type
2.12.1	Traveling Cable	From Control Cabinet to Car top Inspection Box.
2.12.2	Round Shaft Cable	From Control Cabinet to Limit Switches.
2.12.3	Round Shaft Cable	From Control Cabinet to Pit Switch
2.12.4	Landing Door Lock Cable	From Control Cabinet to Landing Door Locks.
2.12.5	LOP Communication Cable	From Control Cabinet to LOPs.
2.12.6	Car Top Branch Cables	From Car Top Inspection Box to COP, Door Operator, Light Curtain and so on
III Other Optional Parts
3.1	Group Controlling Board	For 3-8 units lift
3.2	PC Monitoring Board	Quarter Monitoring
3.3	ARD	Match to Control Cabinet
3.4	UPS	Emergency Power for Brake
3.5	IC Card	Installed in the COP and LOPs.
3.6	Voice Announcement	Broadcast to the floor information
3.7	Vice COP	For run-through door

The above is description mainly aimed at elevator electrical system and related parts. Both mechanical and electrical modernization solutions can be made by ISUZU based on customers' different requirements. Our modernization for your projects will make elevators' performance more excellent.
