Machine Roomless Passenger Elevator (GRPN20)

Features:
1. VVVF door operator, coupled with no connecting-rod synchronous belt type structure make the elevator door open and close smoothly and quietly.
2. 32-bit microcomputer control system, advanced serial communication technology between elevator control cabinets, floors and car to make the control system more efficient and accurate, printed circuit board adopt low power consumption, high integrated SMD components, which improve the life of its electronic devices.
3. Permanent magnet synchronous technlogy and planet gear traction system makes elevator structure much more compact and reasonable.
4. Permanent magnet synchronous conversion door operator make full use of hoistway space and minimize its size.
5. Mini machine-room or no machine-room layout greatly reduce headroom height and pit depth, which can greatly enrich its application.
6. Low-power consumpttion, the fully load power consumption is equivalent to a 2HP air conditioner, and daily power consumption is equivalent to a household refrigerator.
7. Direct brake traction wheel makes elevator run with more security and reliability.
8. Backup battery(UPS) will work automatically when power off unexpectly, it will run elevator to the nearst floor, and open door to release passenger.

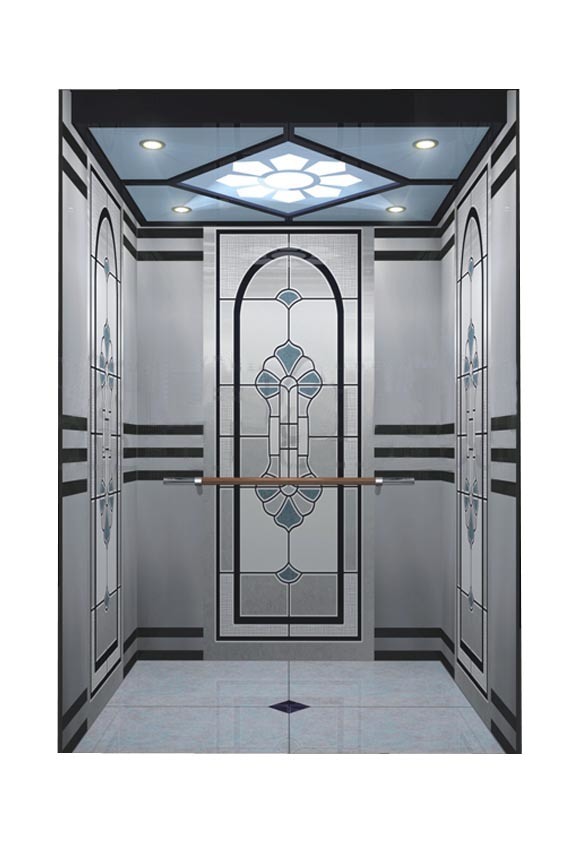

9. Variety of fashionable car decoration and humanized button, customers can choose it as per their own hobbies.

Car & door materail options:
1)Standard - Stainless steel / Stainless steel hairline
2)Optiional -
Steel membrane
Stainless steel etching
Stainless steel mirror etching
Stainless steel mirror
Colored painting
With incorportating glass windows
Customized etc.

Persons	Rated Capacity (KG)	Rated Speed (m/s)	Net size of car(mm)	Net size of door(mm)	Hoistway size (mm)			Max travelingheight (m)
			C.WxC.D	D.WxD.H2p center opening	H.WxH.D	HR.H	P.H
8	630	1.0	1400x1100	800x2100	2250x1550	3900	1600	45
		1.6/1.75				4000	1600	60
10	800	1.0	1400x1350	800x2100	2250x1800	4500	1500	45
		1.6/1.75				4000	1600	60
		2.0				4200	1800	75
13	1000	1.0	1600x1500	900x2100	2450x1950	3900	1600	45
		1.6/1.75				4000	1600	60
		2.0				4200	1800	75
16	1250	1.0	1950x1400	1100x2100	3050x1850	4600	1600	45
		1.6/1.75				4700	1700	60
		2.0				4800	1800	75
18	1350	1.0	1950x1550	1100x2100	3050x2000	4600	1600	45
		1.6/1.75				4700	1700	60
		2.0				4800	1800	75
21	1600	1.0	1950x1750	1100x2100	3050x2200	4700	1600	45
		1.6/1.75				4800	1700	60
		2.0				4900	1800	75
