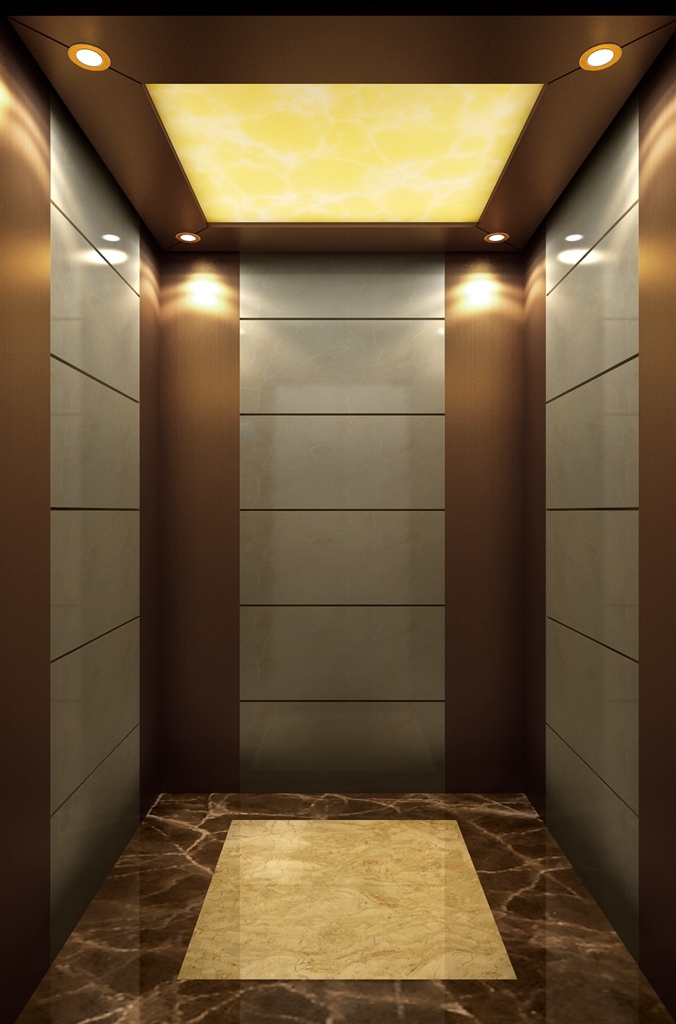

Bronze Brushed Stainless Steel Home Lift Passenger Elevator

This is Bronze Brushed Stainless Steel Home Lift Passenger Elevator(16K017)

This passenger elevator has an exact and effective control system by using the most advanced electronic technology. In additon to this, Syney lifts adopt the latest environment-friendly technonoly in manufacturing, as well as safety device and signal device. Syney passenger lift series can offer you distinctive nobility and luxury, which is the symbol of taste. That is why Syney is suitable for high-grade business building, hotel and luxurious mansions, etc.

Elevator	Capacity	Speed	Cabin and Door Decoration
Passenger Elevator	320kg~1600kg	MR:V≤4.0m/s MRL: V≤2.5m/s	Standard: Cabin, cabin door and main landing door: hairline stainless steel other landing door: painted steel
			Optional: Mirror stainless steel Etching stainless steel Golden mirror etching finish etc.

Standard functions

No.	Function	No.	Function
1	Collective Selective	24	Door lock stop when running
2	Close door interrupted auto return	25	Level adjust
3	Overload Alarm	26	Auto stop
4	Full load bypass drive	27	Floor signal auto-amend
5	Motor overheat protect	28	Door switch protect
6	Machine room emergency electric operation	29	Anti-slid protect
7	Top floor terminal protect	30	Door switch button
8	Car display	31	Landing door/car door lock at certain period
9	Reset Running	32	Landing door open at psent floor
10	Car emergency lightening	33	Speed feedback
11	Car top inspection	34	Reverse running protect
12	Door close time extending protect	35	Shaft position self study
13	5 part interphone	36	Brake feedback inspection
14	Reverse direction register cancel	37	Standby switch
15	Car Alarm bell	38	Car lightening and fan control
16	Fault register cancel	39	Fault self-diagnosis
17	CPU self protect	40	Running direction signal
18	Auto level	41	Fault history record
19	CAN communication protect	42	Service floor setting
20	Fault auto level	43	Floor display setting
21	Level switch protect	44	Auto return main floor
22	Low speed protect	45	Auto return main floor when fire alarm
23	Shaft self-study diagnosis	46	Contactor feedback detection

Capacity	Speed	Cabin Size			Shaft Size					Max Travel	Min Floor H
DL	V	Width	Depth	Open	Width	Depth	Pit	OH	MRH	Max R	Min D
(kg)	(m/s)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(m)	(m)
630	1	1400	1150	800*2100	2000	1800	1500	4500	2300	50	2.7
	1.5						1600	4600		70
	1.75						1700	4700		90
800	1	1350	1400	800*2100	2000	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2050	2100	1900	5000	2500	100
	2.5						2100	5200		120
1000	1	1600	1400	900*2100	2200	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2300	2100	1900	5000	2500	100
	2.5						2100	5200		120
1150	1	1800	1400	1000*2100	2400	2100	1500	4500	2300	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2500	2150	1900	5000	2500	100
	2.5						2200	5200		120
1350	1	2000	1500	1100*2100	2600	2200	1500	4500	2500	50
	1.5						1600	4600		70
	1.75						1700	4700		90
	2				2700	2250	1900	5000		100
	2.5						2200	5200		120
1600	1	2000	1700	1100*2100	2600	2400	1500	4600	2500	50
	1.5						1600	4700		70
	1.75						1700	4800		90
	2				2700	2450	1900	5100		100
	2.5						2200	5300		120

Note:
Above standard specification is only for reference. If shaft size at jobsite is different , please contact with us, factory will design suitable one according to your parameter.
