Detailed Description
Small passenger elevator load 630~1600kg / Various load and faster speed
Cost-effective
As the design and technology of passenger elevator is sophisticated and universal,that means the cost of spare parts and maintenance is lower than other new types.The elevator is also frugal in energy consumption, which keeps operating expenses down. In short, it is a practical and cost-effective solution for customers.
Advanced drive system
Armed with advanced gearless permanent magnet synchronous traction machine(PMSM),our elevators are famous for their simple structure, high speed and stability. They can reach maximum speed up to the world leading level, therefore, basically suiting building with different floors.
| Load | Person | Speed | Internal car size | Internal car size | Pit depth | Overhead | Power |
| kg | no. | m/s | CWxCD(mm) | SW(min) | SD(min) | SW(max) | SD(max) | (mm) | (mm) | (kw) |
| 630 | 8 | 1.0 | 1400x1100x2400 | 1900 | 1800 | 2300 | 2200 | ≥1500 | ≥4500 | 4.5 |
| 1.5 | ≥1600 | ≥4600 | 6.8 |
| 1.75 | ≥1700 | ≥4600 | 7.9 |
| 800 | 10 | 1.0 | 1400x1350x2400 | 2000 | 2050 | 2400 | 2450 | ≥1500 | ≥4400 | 5.5 |
| 1.5 | ≥1600 | ≥4500 | 8.3 |
| 1.75 | ≥1700 | ≥4600 | 9.6 |
| 2.0 | ≥1800 | ≥4800 | 13.5 |
| 2.5 | ≥2200 | ≥5000 | 16.8 |
| 1000 | 13 | 1.0 | 1600x1400x2400 | 2100 | 2100 | 2500 | 2500 | ≥1500 | ≥4400 | 6.7 |
| 1.5 | ≥1600 | ≥4500 | 10 |
| 1.75 | ≥1700 | ≥4600 | 11.7 |
| 2 | ≥1800 | ≥4800 | 13.5 |
| 2.5 | ≥2200 | ≥5000 | 16.8 |
| 1150 | 15 | 1.0 | 1700x1500x2400 | 2200 | 2200 | 2600 | 2600 | ≥1500 | ≥4400 | 8.7 |
| 1.5 | ≥1600 | ≥4500 | 12.8 |
| 1.75 | ≥1700 | ≥4600 | 14.8 |
| 2 | ≥1800 | ≥4800 | 16.9 |
| 2.5 | ≥2200 | ≥5000 | 21.3 |
| 1350 | 18 | 1.0 | 1800x1600x2400 | 2400 | 2300 | 2800 | 2700 | ≥1500 | ≥4400 | 9.3 |
| 1.5 | ≥1600 | ≥4500 | 13.9 |
| 1.75 | ≥1700 | ≥4600 | 16.1 |
| 2 | ≥1800 | ≥4800 | 18.4 |
| 2.5 | ≥2200 | ≥5000 | 23.2 |
| 1600 | 21 | 1.0 | 2000x1700x2400 | 2500 | 2400 | 2900 | 2800 | ≥1500 | ≥4400 | 11 |
| 1.5 | ≥1600 | ≥4500 | 16.4 |
| 1.75 | ≥1700 | ≥4600 | 19.2 |
| 2 | ≥1800 | ≥4800 | 21.8 |
| 2.5 | ≥2200 | ≥5000 | 27.5 |

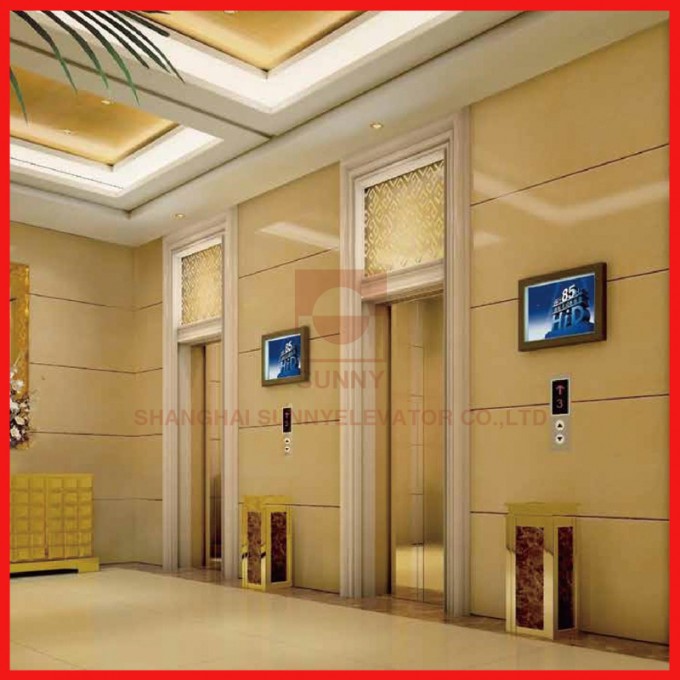

Product Image
