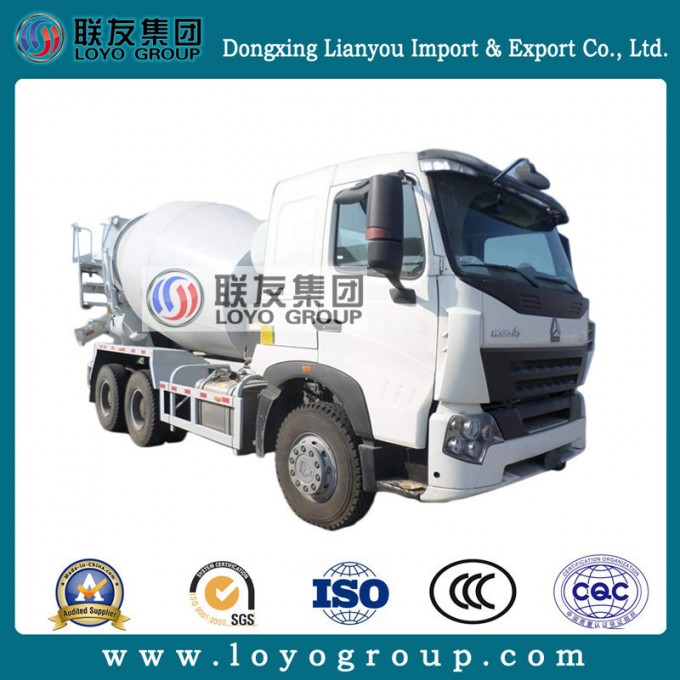

Sinotruk HOWO A7 10Wheel 10cubic Concrete Mixer TruckFor Sale
Product DescriptionTransit Mixer Truck
| Parameter | |||||||
| SINOTRUK HOWO A7 6X4 371HPwith 10m3 Concrete Mixer Truck | |||||||
| Mixer Tank | Mixing volume | 10m3 /8m3 | |||||
| Geometric volume of thedrum | 15.5m³ | ||||||
| Pump | Eaton 54 | ACA542337R | origin:USA | ||||
| Motor | Eaton54 | HHD543321 | origin:USA | ||||
| Decelerator | PMP6.5sp | origin:ITALY | |||||
| Material of Tank | material of the drum: JJ520, special high-strength wear-resistant plate for mixer truck produced by Shougang | ||||||
| Tanker Thiness | body thickness:5mm | head thickness:8mm | |||||
| Material of blade | material of the drum: JJ520, special high-strength wear-resistant plate for mixer truck produced by Shougang, thickness:4mm, and with the welded steel pventing abration | ||||||
| Material of the vice frame | 16Mn Seamless Rectangular Pipe, thickness:8mm,Cross-section dimensions120*80mm | ||||||
| Drum Inclination: | 15 degrees | Filling rate | 64.50% | ||||
| Drum working speed : | 0-18r /min | discharging the residual rate: | <1% | ||||
| ater tank volume: | 400l | Air pssure system | |||||
| GVW25000kg | Driving Type 6x4 | ||||||
| Model | ZZ5257GJBM3847 | ||||||
| Engine | Model | WD615.47 | |||||
| Horsepower | 371hp | ||||||
| Maximum output Kw/r/min | 247/2200 | ||||||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged &inter-cooled, direct injection | ||||||
| Displacement | 9.726L | ||||||
| Make SINOTRUCK (CNHTC), Euro II emission standard | |||||||
| Cab | SINOTRUK A7-W cab,right hand driving ,with air conditioner, single bunk,new type seat,adjustable steering wheel | ||||||
| Option:color; Wind guide cover | |||||||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||||||
| Transmission | SINOTRUK HW13710transmission ,10 forward and 2reverse | ||||||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brake | ||||||
| Steering | German ZF8098 Steering Gear Box ,hydraulic steering with power assistance | ||||||
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STRaxle | ||||||
| Brake System | Service brake:dual circuit compssed air brake | ||||||
| Parking brake (emergency brake):spring energy,compssed air operating on rear wheels | |||||||
| Auxiliary brake:engine exhaust valve brake | |||||||
| Tyres | 12.00R20radial tyrewith 1Spare tire | ||||||
| Electrics | Operating voltage:24V,negative grounded | ||||||
| Starter:24V,7.5 Kw | |||||||
| Alternator:3-phase,28V,1500 W | |||||||
| Batteries:2x12 V,165 Ah | |||||||
| horn,headlamps,fog lights,brake lights,indicators and reverse light | |||||||
| Oil Tank | Square type-300Lfuel tank | ||||||
| Dimensions | Overall length xwidth xheight9300x2496x3998mm | ||||||
| Wheel base3825+1350 | |||||||
| Weight (kg) | Kerb weight13360 | ||||||
| Gross vehicle weight25000 | |||||||
| Performance | Maximum drving speed (km/h)78 | ||||||
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer | ||||||
| be suitable for long distance transportation of ocean and inland. | |||||||
| The manufacturer reserves the right of technical alteration /change for better improvement without prior notiice | |||||||
20FT container, 40FT container,40FT high container,open-top container,flat bed container ,Ro-Ro ship or bulkship according to the size the products.
Our companyis aauthorized dealer and exporter of China National Heavy Duty Truck
Group Co., Ltd (SINOTRUK)
Main Business
main business including dump truck manufacturing &modification, sales and
service of all series SINOTRUK(CNHTC) product includingas follow:
1. dump truck ,
2.off-road mining truck
3.tractors
4.cargo truck
5. concrete mixer truck
6.water tanker
7.oil tanker
8.Semi trailer
9. other special truck
10. spareparts
As far as horsepower concerned, we have covered horsepower level range90Hp to 540Hp,
can meet clients' different needs.
Our target
Our target is to be aworld well-known supplier and provide
customers with cleaner, energy-saving, safe, reliable and comforter transportation vehicles.
FAQ
Q:How about the warranty?
A:One year.
Q:How about the delivery time?
A: Most of our trucks have stock ,we can deliver to you within 7days, if specially ordered ,normally we need around 30 days for production.
Q: How manyunits oftruck does your factory produce per year?
A:Almost 4000 units.Nearly 400units per month.
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes arigorous inspection process.
Q: How about your productafter-sales service system?
A:Our main export countries have accepted after-sales
service,some countries use the third party service.
