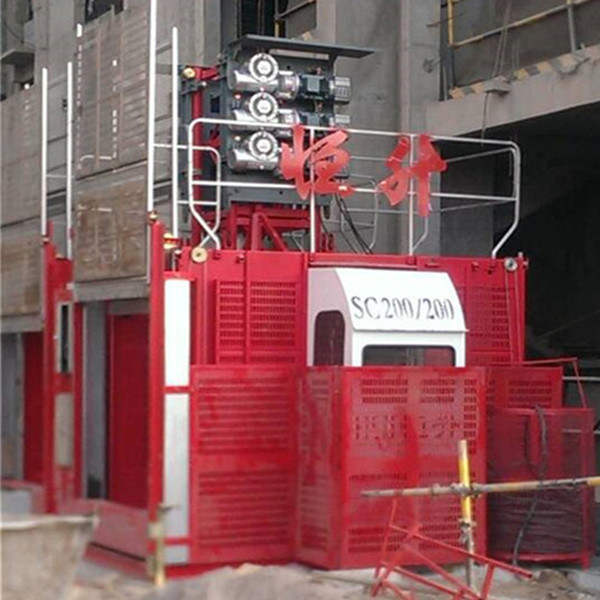

2 Ton Double Cage Building Hoist Elevator Sc200/200

2 Ton Capacity building hoist SC200/200 for Sale
Construction Lifting Hoist /construction elevator

Construction elevator also named builders hoist, it can be used on construction site for deliverying matrial to each floor.
We offer single cag and double cage hoist at psen with each cage capacity 2t.
Frequency can be choosed by customers.

Material Lift for sale offered by China Supplier hstowercrane

Construction Elevator

Prominent Features of Construction Lift
1. Mast section welded by welding Robot ensures reliable quality and elegant appearance.
2. All the steel structures are processed with blasting technology to remove rust. The adhesion of surface painting is outstanding.
3. Suspension cage guarding board adopts figured aluminum plate and numerical control punched aluminum plate. The suspension cage is lightweight and artistic in appearance.
4. Driving mechanism supplied by the professional manufacturer with high efficiency, long service life and stability in performance.
5. Complete set of overload protection devices, variety of limiters and mechanical chain devices ensure its reliability. Anti-falling safety device adopts SAJ40-1.2, which restricts the excessive downward movement of the cage, pventing and eliminating accidents.
6. Construction elevator with frequency inverter is safe, stable and comfortable. Starting electricity is smaller than working electricity, energy-saving and high efficient.

The Mast section(color is variableor galvanized) is made of seamless pipe.
(The high quality seamless steel pipe is good verticality, anti-pssure, anti-aging, thickness and so on)


Completed safety measures
1.Equippedwith Anti-fallinggovernor.
2. Electrical an Mechanical interlock: Door safety switches, Slack rope switch.
3. Safety hook.
4. Upper and bottom limit switches, trap door limit switch.
5. Overload protector.
6. Bottom Buffer.
7.FrequencyConversion (Inverter)forchoose.
8. PLC Control systemfor choosechoose.
9. Level Calling system and Auto leveling devicefor choosechoose.




technical performance parameters

Item	name	SC200/200
1	rated load	2×2000kg
2	Freestanding height(m)	50
3	max. lifting height(m)	180
4	operating speed(m/min)	33.4
5	speed limit(r/min)	45±5
6	motor type	YZZ132M-4
7	power(KW)	2X(3×11)
8	gear and rack modulus	8
9	safety device	SAJ40-1.2 series safety device
10	Sectiondimension(m)	0.65×0.65×1.508
11	weight of section (kg)	164
12	Max. dimension of cage(m)	3×1.5×2.5
13	total weight(free standing height)(t)	12

PACKING INFO
1. Film wrapped into container by sea or truck by land.
2. Steel box for spare parts



SHIPPING INFO
1. Send commissioning video to you before shipment;
2. By Sea for batch goods, for Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5-20 days against advanced payment.

PAYMENT TERMS
1. Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1set.
3. Warranty: Totally 12 months for the whole set machine from the very day machine installed and working well.

OUR SERVICE
1. )Providing timely delivery, standby engineers are ready to solve any problems
2. )Providing 12 (twelve only)months product warranty period, with ample spare parts
3. )Providing work site installation guidance and training of operation and maintenance
