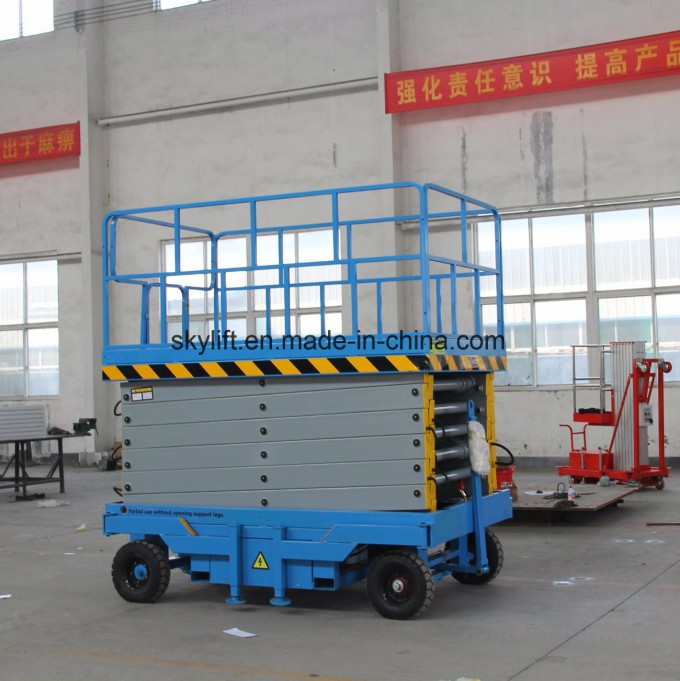

Electric Scissor Elevator

The scissor liftare used where more workspace and lifting capability isrequired. With working heights up to20 metersand capabilities up to3000kg(2200lbs), they are designed to provide larger platform work areas and generally to allow heavier loads than boom lift.
Features

• Vertical raising of platform
• Convenient operation (can be controlled both on the platform and the ground)
• Horizontal extension of deck(customized)

  Scissor lifts are available in various electric and battery and diesel powered models.

  Model& Advantages

  Electric PoweredModels (220v or 380v etc)

  • Indoor Usage
  • No noise and air pollution

    Diesel Powered Models

    • Outdoor Usage
    • Longer usage time

      Battery Powered Models

      • Outdoor Usage
      • Nonoise

        Model	Platform size	Load	Lifting Height	Dimension	Machine weight
        SJY0.3-4	2100*820mm	300kg	4m	2200*950*1100	800
        SJY0.3-6	2100*820mm	300kg	6m	2200*950*1200	880
        SJY0.3-8	2100*900mm	300kg	8m	2200*1060*1380	1050
        SJY0.3-10	2100*1200mm	300kg	10m	2200*1350*1530	1360
        SJY0.3-12	2550*1500mm	300kg	12m	2720*1670*1750	2260
        SJY0.3-14	2550*1500mm	300kg	14m	2800*1800*1950	2510
        SJY0.3-16	3070*1600mm	300kg	16m	3250*1800*2080	3400
        SJY0.3-18	3070*1600mm	300kg	18m	3250*1800*2080	3600
