Detailed Description

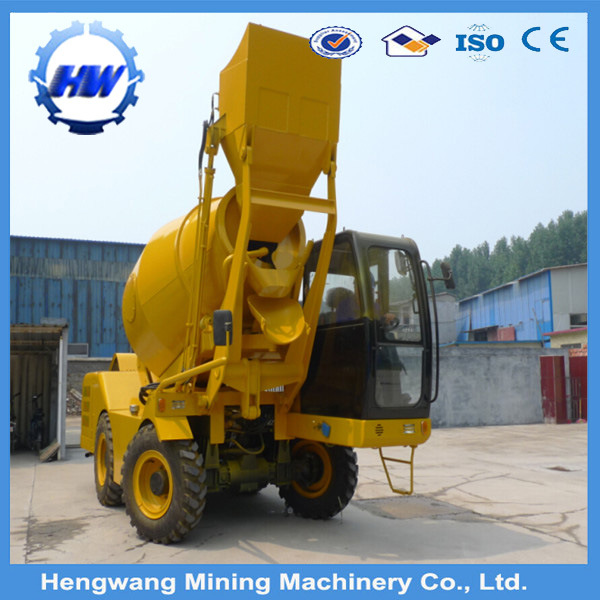

Mobile Mini Co
ncrete Mixer Pump/Co
ncrete mixer machine (Manufacturer)
Product Introduction
1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban co
nstruction ,tunne l,airport ,seaport ,high-speed rail site and so on.
2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability3.Small capacity mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles ,improve thedriving safety.
3. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.
4.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.
Technology Parameters
MIXING UNIT | Drum capacity 4.3 m3. Concrete output: 3.0 m3 per batch. The mixing unit is slewing hydraulically through 300° |
| PRODUCTIVITY | up to 4batches per hour |
| ENGINE | YUCHAI YC4D85 water-cooled, 4cylinders. Rated power 60KW/2200rpm . |
| TRANSMISSION | 4 wheels drive,4 wheels steering. |
| SPEED | Working speed from 0to 9km/h, road transfer from 0to 20 km/h. |
| DRIVING SEAT | Front cab on side of loading shovel. ROPS-FOPS type complete with double closing door. |
| HYDRAULIC SYSTEM | Three circuits. 2variable outlet pumps for hydrostatic transmission and drum rotation. 1gear pumps for services. Inlet and outlet filter. Heat exchanger water/oil-air type. |
| JOYMIX | All hydraulic functions of shovel controlled by asingle -fully servo controlled Joystick. |
| LOADING SHOVEL | Capacity 400 liters, complete with hydraulic opening gate. |
| CHUTE | Slewing and hydraulically tilting. Fitted with two pins easily detachable to increase the discharge height. |
| WATER SYSTEM: | Self-contained. Hydraulic driven water pump, water meter. High pssure water pump &washing gun(on request). |
| BRAKES: | Oil bath disc brakes inside differential axles. Twin indipendent circuits. Negative hydraulic parking brake. |
| TYRES | 10.00-20-16 |
| ELECTRIC SYSTEM | 24 Volt. 120 Ah battery for electric starter and road lighting. Safety battery cut-off. |
| TANKS | Water: 2x300 liters. Diesel: 100 liters. Hydraulic oil: 125 liters. |
| CHASSIS | Steel profile specially engineered for off-road operations. |
| WEIGHT | about Kg.7500, equally distributed on both axles |
| OVERALL DIMENSIONS | Long: 6.715M Width 2.28M High: 3.23M |
| SAFETY | Machine equipped with checking and block valves for maximum safety of the operator. |
