Goods Freight Elevator in Building 5000kg Lift

Product Applicationgoods freight elevator in building 5000kg lift
The freight elevator are designed for different types of residential buildings, factory, WorkshopHigh performance elevator parts, permanent magnet synchronous drive and intelligent door system, safe and reliable.freight elevator is for Large-Factory Buildings Vertical freight promotion.freight elevator is to solve the last 100metersn of Logistics of induatrial Park.

goods freight elevator in building 5000kg lift

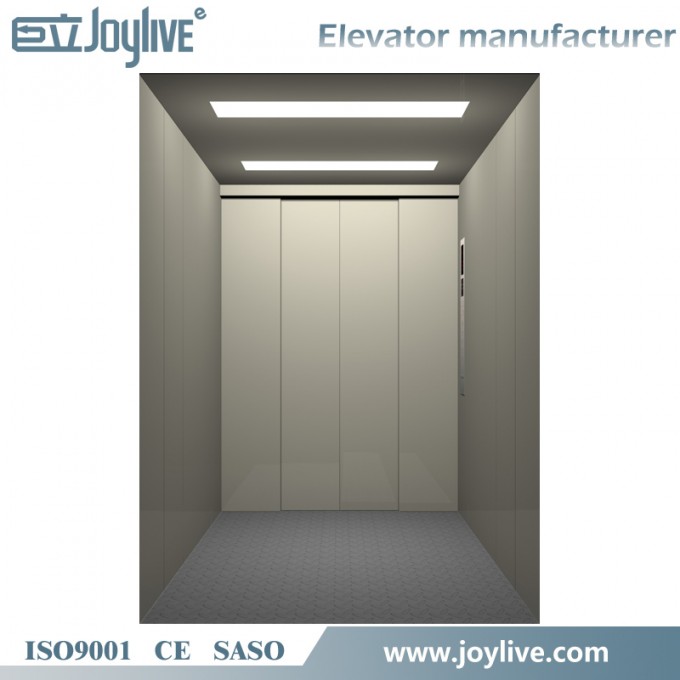

Ceiling:Hairline stainless steel, white acrylic+LED

Cabin panel: Hairline stainless steel

COP: Hairline stainless steel

Flooring:Patterrned steel

Loadcapacity (Kg)	RatedSpeed m/s	CarDimension CW*CD(mm)	DoorOpening Dimension EW*EH(mm)	Door Numbers	DoorOpening Type	StandardShaft Dimension HW*HD(mm)	MaxShaft Dimension HW*HD(mm)	StandardPitDepth Pd(mm)	Standardtop floorheight Th(mm)	Remark
1000	0.5	1400×1700	1200×2100	Single OpeningDoor	Side Opening	2250×2100	3600×3600	1500	4300	Single Elevator
	1		1100×2100	Through Opening Door	Side Opening	2100×2350	3600×2900	1500
1600	0.5	1300×1800	1500×2100	Single OpeningDoor	Central Opening	2650×2750	4300×3600	1500	4300	Single Elevator
	1
1600	0.5	1500×2300	1500×2100	Through OpeningDoor	Central Opening	2650×2900	4300×2900	1500	4300	Single Elevator
	1
2000	0.5	1700×2400	1700×2100	Single OpeningDoor	Central Opening	2900×2900	4800×4000	1500	4300	Single Elevator
	1
2000	0.5	1700×2400	1700×2100	Through OpeningDoor	Central Opening	2900×2900	4800×3400	1500	4300	Single Elevator
	1
2500	0.5	2000×2500	2000×2100	Single OpeningDoor	Central Opening	3350×3000	5300×4500	1500	4300	Single Elevator
	1
2500	0.5	2000×2500	2000×2100	Through OpeningDoor	Central Opening	3350×3100	5300×3900	1500	4300	Single Elevator
	1
3000	0.5	2000×2800	2000×2100	Single OpeningDoor	Central Opening	3350×3300	5300×4800	1500	4300	Single Elevator
	1
3000	0.5	2000×2800	2000×2100	Through OpeningDoor	Central Opening	3350×3400	5300×4200	1500	4300	Single Elevator
	1
4000	0.25	2000×2800	2200×3300	Single OpeningDoor	Central Opening	3800×3800	5500×5000	1600	4800	Single Elevator
	0.5
4000	0.25	2000×2800	2200×3300	Through OpeningDoor	Central Opening	3800×3900	5500×4400	1600	4800	Single Elevator
	0.5
5000	0.25	2000×2800	2500×3500	Single OpeningDoor	Central Opening	4150×4000	6200×5900	1600	4800	Single Elevator
	0.5
5000	0.25	2000×2800	2500×3500	Through OpeningDoor	Central Opening	4150×4100	6200×5300	1600	4800	Single Elevator
	0.5

Joylive Elevator Suzhou Co.,ltd Advantage:
1. "One-stop" service mode
2. Guarantee high-quality Passenger elevator products
3. Pay attention to installation and after-sales service
4. Timely maintenance management with Professional knowledge and Responsibility
5. Intelligent Manufacturing & Smart Services
6.We use the best parts for our Passenger elevator, gearless motor from xizi Otis, door operator from Shenling or Wittur, control system from Monarch or STEP etc.
