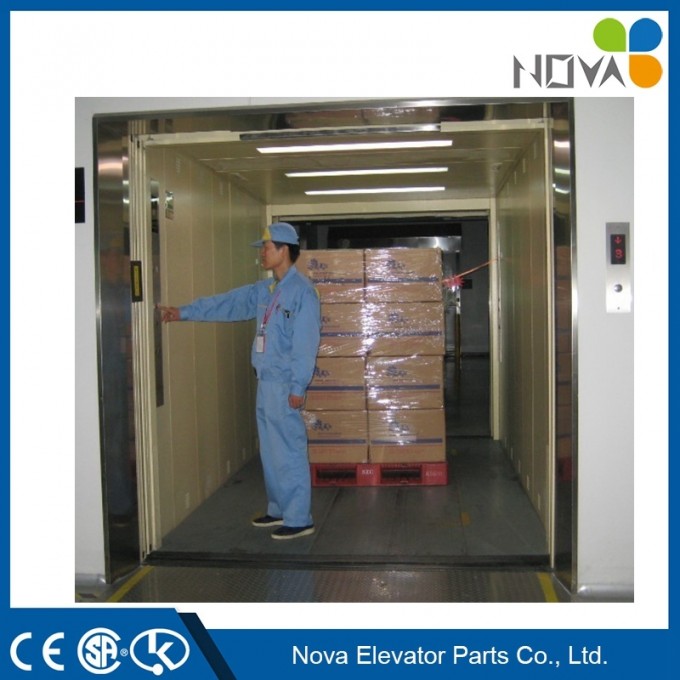

1000kgs-5000kgs Cargo Freight Goods Elevator Lift

NOVA freight elevator applies the world's most advance micro-computer control technology. It combines with high strength section material craft and technology for design and manufacture. It is backed by the outstanding transport performance. It is competent to the transport tasks under various harsh environments. It has the advantages such as safe, reliable, high structural strength, durable, large door-opening distance, hign cost performance etc. It is an ideal choice for various occasions such as the factory, warehouse, departmanet stores, housing property management center etc.

Features:
1. VVVF speed governor technology
2. Light curtain protection system
3. Emergency lighting in power disconnection
4. Car fan and automatic car lighting

Capacity	Speed	Cabin		Net opening size		Opening Way	Shaft		Overhead Height	Pit Depth
		CW	CD	JJ	HH		HW	HD	OH	PH
1000	0.5/1	1400	1700	1400	2100	2 Panels Side opening	2500	2200	4200	1400
1600	0.5	1500	2300	1500	2100		2650	2800
2000	0.5	1800	2300	1500	2100
3000	0.25/0.5	2000	2800	2000	2100	4 Panels Center Opening	3400	3300
4000	0.25/0.5	2200	3300	2000	2100		3750	3800	4500	1500
5000	0.25/0.5	2400	3600	2000	2100		4000	4100

NOVA car elevator inherits the advanced German car lifting technology. It has been specially designed according to particularity of car products. It solves the unstable technical barriers of large noice to traditional car elevators.
It is backed by the attractive outline, convenient operaion mode, little sharing space, high utilization rate of the space, wide application range. It becomes a model example of new generation car elevators.
