Freight Elevator

LGEER ELEVATOR supply:

1, Passenger elevators and escalators, sightseeing lift ,moving
walk and home lift .

2, Good quality and competitive price

3, Good before and after sales service.

For whole lift, we chose global level parts, neither just using cheaper parts, nor just buy and buy commodity boxes from others.

UNIQUE FEATURE--

High Quality And Noble Honor
Under the profund influence of the GERMAN brand. LGEER elevator adheres to the concept of manufacturing sophisticated elevator,gaining consistent high phraise from industry market and government.
The Multiple Door Opening Modes
In order to satisfy different entry/exit requirements from vast users,LGEER frieght elevator offers four door opening modes of side opening , center opening double-folded door, one-way door opening, opposite door opening. It can flexibly match with the factory, warehouse , department store, shopping venter,housing property management center etc.
Permanent Magnetic Synchronous Gearless Traction Machine
The comprising of using rare earth material, combined coaxial driven mode, digital convert and group computer control technique lessened the cost and the energy dissipation, and it can save by more than 33% energy than traditional machine room. Gearless traction machine needn't to change oil, so there is no oil pollution and the noise is lower.

PAEAMETER OF FREIGHT ELEVATOR--

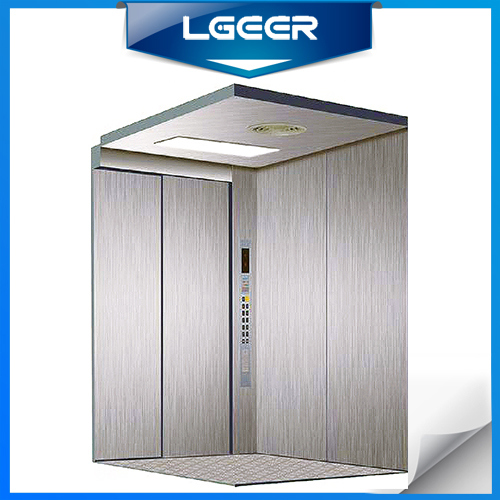

Decoration Type: LG-HJ001(Standard)

Item	Style
Car Ceiling	Painted Steel (Light Gray)
Car wall, Car door	Painted Steel( Light Gray)
C.O.P	Hairline Stainless Steel
Car Floor	Checked steel plate
Door opening mode	Side opening

Specifications:

Load	Speed	Car side	Door-opening side		Hoistway size	Machine room size	Overhead height (OH)	Pit depth (PP)
		Outer Side	Door net opening	Net door height	X x Y	S x T
1000	0.5	1500*1450	1200	2100	2400*2100	3000*3000	4500	1500
2000	0.5	1800*2200	1500	2100	2800*2900	3500*4000	4500	1500
3000	0.5	2000*2700	1800	2100	3400*3400	4000*4500	4600	1500
5000	0.5	2500*3400	2400	2100	4200*4100	4500*5000	4700	1500

Freight Elevator Function

Automatic Running(O)	Inspection Running(O)
Attendant Operation(O)	Power-on auomatic opening(O)
Automatic closing time-delay(O)	Local outer calling opeing(O)
Light curtain protection(O)	Overload on-closing(O)
Full-load bypass(O)	Attendant-controlled bypass(O)
Repeat door-closing(O)	Trouble diagnosis(O)
Parking control(S)	Non-stop setting(S)
Attendant-selected fixed direction(S)	special running(S)
Dot-matrix display floor(S)	Setting of waiting floor(S)
Setting of waiting floor(S)	Running contactor protection(S)
Safety loop protection(S)	Limit protection(S)
Well self-turning(expect VP control)(S)

S- STANDARD O-OPTION



SERVICE SYSTEM--
Zero defect of the products, zero complaint in use , zero trouble in service
Long-distance monitor and 24-hour continous service .When there is something wrong with the elevator in running, it reaches the site as soon as possible.
It carefully produces after-sale repair&maintenance staff , the advanced repair & maintenance tech so that the clients can rest assured in using LGEER elevators.
