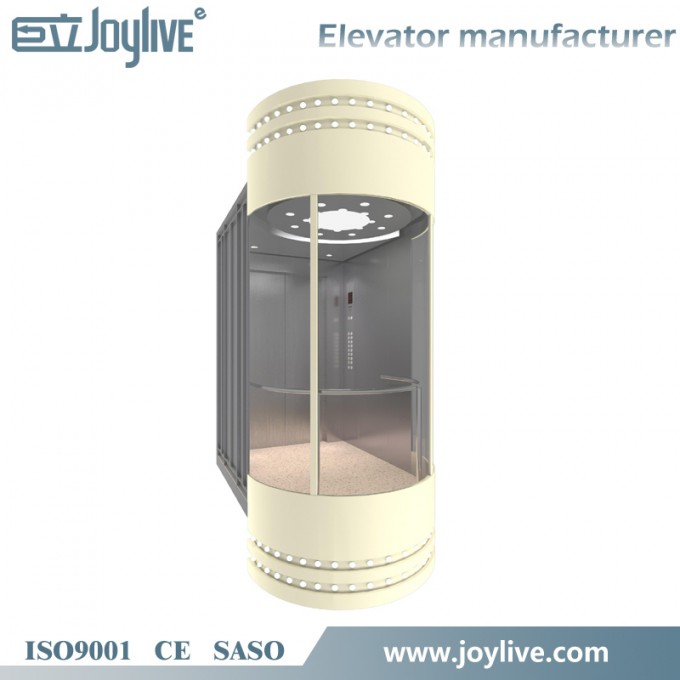

China Passenger Elevator with Safety Glass

Product Application
Product Name:China Passenger Elevator With Safety Glass

The Panoramic Elevator are designed for different types of residential buildings, Market and Passenger
High performance glass elevator, permanent magnet synchronous drive and intelligent door system, safe and reliable.
Panoramic Elevator is for Large-Factory Buildings Vertical freight promotion.
Panoramic Elevator is to solve the last 100metersn of Logistics of induatrial Park.

Product Name:China Passenger Elevator With Safety Glass

Panoramic Elevator Lift Upper and Lower cover:Hairline Stainless Steel

Ceiling:Hairline Stainless Steel

Cabin panel: Hairline stainless steel,safety glass

COP: Hairline Stainless Steel

Handrail:Round hairline stainless steel

Flooring: Marble

Loadcapacity (Kg)	RatedSpeed m/s	CarDimension CW*CD(mm)	DoorOpening Dimension EW*EH(mm)	Door Numbers	DoorOpening Type	StandardShaft Dimension HW*HD(mm)	MaxShaft Dimension HW*HD(mm)	StandardPitDepth Pd(mm)	Standardtop floorheight Th(mm)	Remark
630	1	1400×1100	800×2100	Single OpeningDoor	Central OpeningDoor	1900×1700	2700×2100	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
630	1	1100×1400	800×2100	Through OpeningDoor	Central OpeningDoor	2000×1900	2800×1900	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
800	1	1400×1350	800×2100	Single OpeningDoor	Central OpeningDoor	1900×1950	2700×2350	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
800	1	1400×1350	800×2100	Single OpeningDoor	Central OpeningDoor	1900×1950	2700×2350	1400	4450	Interconnection elevator
	1.5							1450	4500
	1.75							1450	4600
800	1	1350×1450	800×2100	Through OpeningDoor	Central OpeningDoor	2200×1900	3000×1900	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
1000	1	1600×1400	900×2100	Single OpeningDoor	Central OpeningDoor	2100×2000	2900×2400	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
1000	1	1400×1600	900×2100	Single OpeningDoor	Central OpeningDoor	2300×2100	3100×2100	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
1000	1	1600×1400	900×2100	Single OpeningDoor	Central OpeningDoor	2100×2000	2900×2400	1400	4450	Interconnection elevator
	1.5							1450	4500
	1.75							1450	4600
1000	2	1600×1400	900×2100	Single OpeningDoor	Central OpeningDoor	2200×2200	3000×2600	1550	4700	single elevator
	2.5							1800	4950
1150	1	1800×1400	1000×2100	Single OpeningDoor	Central OpeningDoor	2300×2100	3100×2500	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
1250	1	1900×1500	1100×2100	Single OpeningDoor	Central OpeningDoor	2400×2200	3200×2600	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
1350	1	1900×1600	1100×2100	Single OpeningDoor	Central OpeningDoor	2400×2300	3200×2700	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600
1600	1	2000×1700	1100×2100	Single OpeningDoor	Central OpeningDoor	2500×2400	3300×2800	1400	4450	single elevator
	1.5							1450	4500
	1.75							1450	4600

Joylive Elevator Suzhou Co.,ltd Advantage:
Product Name:China Passenger Elevator With Safety Glass

1. "One-stop" service mode
2. Guarantee high-quality Passenger elevator products
3. Pay attention to installation and after-sales service
4. Timely maintenance management with Professional knowledge and Responsibility
5. Intelligent Manufacturing & Smart Services
6.We use the best parts for our Passenger elevator, gearless motor from xizi Otis, door operator from Shenling or Wittur, control system from Monarch or STEP etc.

Delivery:

Joylive Elevator Suzhou Co.,ltdvarious style roomless Joylive
China Passenger Elevator With Safety Glass
