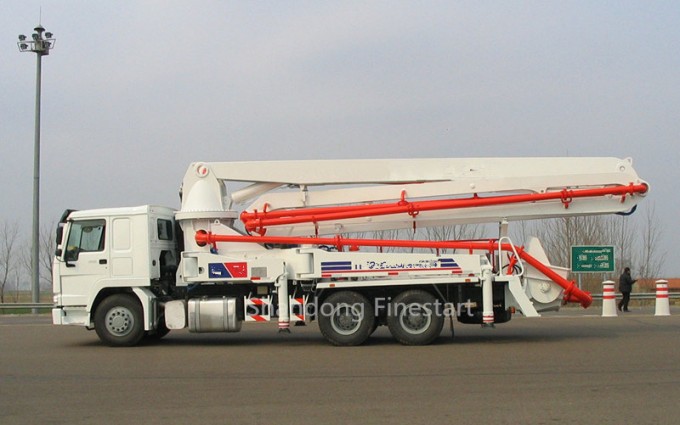

Technical Parameter of Concrete Pump Truck-24m| Model | 5180THB-24/3 | Chassis Model | ZZ1167N5618W | |||||
| Total Weight | 18460kg | Driving Mode | 4×2 | |||||
Max. Driving Speed | 92km/h | Driver Cab with Air Conditioner, Sleeping Room | ||||||
| Wheel base | 5600 mm | |||||||
shape | Total Length | 10950mm | Wheel Tread | Front | 2022mm | |||
| Total Width | 2500mm | |||||||
| Total Height | 4000mm | Rear | 1830mm | |||||
Engine | Engine Model | WD615.95 SINOTRUCKWD615.95 | Tire Size | 12.00R20Radial Tire | ||||
| Mini. Turning Radius | 8800mm | |||||||
| Driving Brake | Double Loop Air Brake | |||||||
| Power | 213kw/2200rpm | Boom System | Model | 3 section, Folded, Hydraulic | ||||
| Max. Torque | 1350NM/1180~1480rpm | Max. Height | 23.1m | |||||
Emission Standard | EU III | Pipe Diameter | DN125 | |||||
Gearbox Model | HW19710 | Length of End Hose | 3m | |||||
| Displacement | 9726 9726ML | Section1boom | Length | 8220 | ||||
Pump Delivery System | Driving Mode | Hydraulic | Rotation | 910 | ||||
Oil cylinder Diameter×Stroke | φ140mm×2000mm | Section2boom | Length | 5680mm | ||||
| × Deliverycylinder Diameter×Stroke | φ230mm×2000mm | Rotation | 1800 | |||||
Distribution Vale | S S Valve Mode | Section3boom | Length | 5215mm | ||||
Concrete Output in Theory | 100m3/h | Rotation | 2680 | |||||
Pump Delivery Pressure in Theory | 8Mpa | |||||||
Rotation Range | /365° Any Angles/365° | |||||||
Pump Delivery Times in Theory | 19/ 19times/min | Max. Working Radius | 19.1 m | |||||
Max. Working Height | 23.1 m | |||||||
Hydraulic System Pressure | 32MPa | |||||||
| Lubrication | Grease self-lubrication | |||||||
| Bucket Capacity | 0.7M3 | Oil Tank Capacity | 1000L | |||||
| Aggregate Reaching Height in Bucket | 1.40m | Control | / Manual/Remote Control | |||||
Systematic Oil Pressure | 32Mpa | Max. Water Pump Pressure | 6MPa | |||||
| Falling Degree | 14cm~23cm | Water Tank Capacity | 650L | |||||
Max. Aggregate Diameter | 40mm | Hydraulic Oil Cooling Mode | Wind | |||||
| Outrigger span | 4550×2280×6030 | Pipe Clean Mode | / Water/Dryer | |||||
