11-19 People Hospital Bed Elevators

11-19 People Hospital Bed ElevatorsProduct Applicationa.The hospital elevator are designed for different types of residential buildings, villas residential, office buildings.b.hospital elevator have high performance elevator parts, permanent magnet synchronous drive and intelligent door system, safe and reliable.c.hospital elevator permanent magnet synchronous traction machine,smaller volume but higher efficiency, saving more space for the headroom.d.hospital elevator highest safty standard, to ensure passenger safty.e.hospital elevator multiple customized for the transportation arrangement and structure for matching the design style .

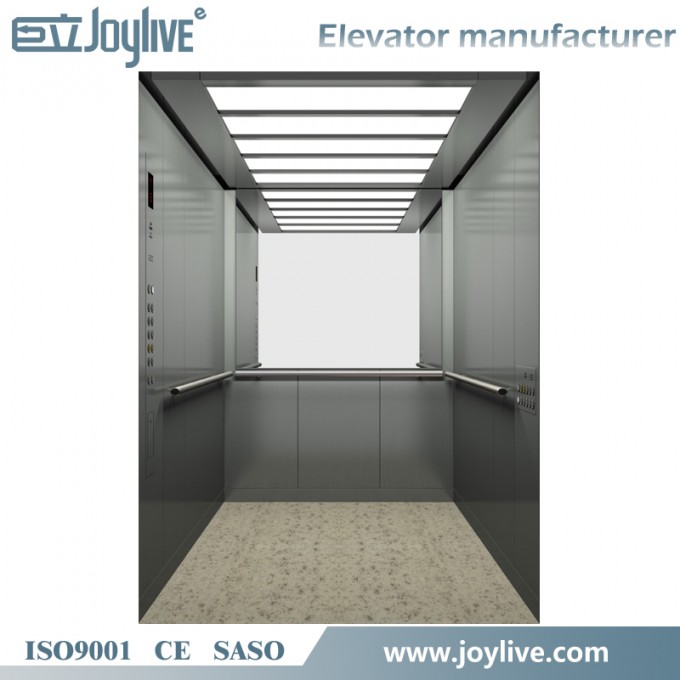

Hospital elevator

Ceiling:Hairline stainless steel, white acrylic+LED

Cabin panel: Hairline stainless steel, rear wall half height mirror

COP: Hairline stainless steel

Handrail: Roundhailline stainless steel

Flooring: PVC
11-19 People Hospital Bed Elevators

Loadcapacity (Kg)	RatedSpeed m/s	CarDimension CW*CD(mm)	DoorOpening Dimension EW*EH(mm)	Door Numbers	DoorOpening Type	StandardShaft Dimension HW*HD(mm)	MaxShaft Dimension HW*HD(mm)	StandardPitDepth Pd(mm)	Standardtop floorheight Th(mm)	Remark
1600	1	1400×2400	1200×2100	Single OpeningDoor	Side OpeningDoor	2300×2900	3800×3500	1400	4450	Single Elevator
	1.5							1450	4500
	1.75							1450	4600
1600	1	1400×2400	1200×2100	Through OpeningDoor	Side OpeningDoor	2300×3050	3800×3150	1400	4450	Single Elevator
	1.5							1450	4500
	1.75							1450	4600
1600	1	1400×2400	1200×2100	Single OpeningDoor	Central OpeningDoor	2600×2800	4100×3400	1400	4450	Single Elevator
	1.5							1450	4500
	1.75							1450	4600
1600	1	1400×2400	1200×2100	Through OpeningDoor	Central OpeningDoor	2600×2900	4100×3000	1400	4450	Single Elevator
	1.5							1450	4500
	1.75							1450	4600

Joylive Elevator Suzhou Co.,ltd Advantage:
1. "One-stop" service mode
2. Guarantee high-quality Passenger elevator products
3. Pay attention to installation and after-sales service
4. Timely maintenance management with Professional knowledge and Responsibility
5. Intelligent Manufacturing & Smart Services
6.We use the best parts for our Passenger elevator, gearless motor from xizi Otis, door operator from Shenling or Wittur, control system from Monarch or STEP etc.
11-19 People Hospital Bed Elevators
Delivery:

Joylive Elevator Suzhou Co.,ltd
11-19 People Hospital Bed Elevators
