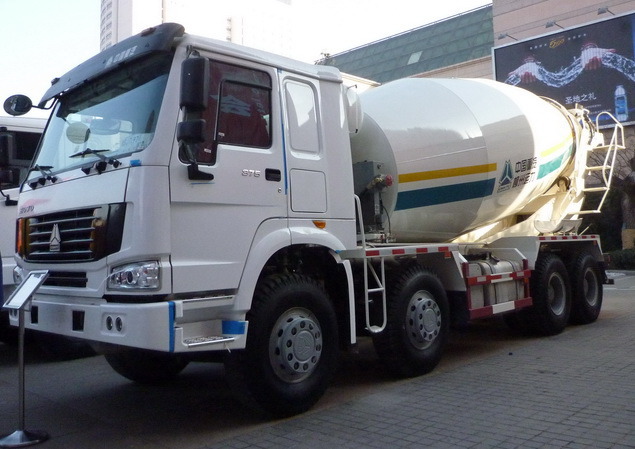

| Name | HOWO 16M3 Concrete Mixer Truck (16cbm) |
| Driving type | 8x4 |
| Driver's Cab | HW76, with two seats one bed ,left hand drive,all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in ratio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts and adjustable steering wheel.4 point support fully floating suspension and shock absorber with tranverse stabilizer.air conditioner. |
|
|
|
| Engine | Make: SINOTRUK |
| Diesel 4-stroke direct injection diesel engine |
| Engine model: WD615.47, Euro 2 emission standard |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Maximum output: 371 hp at 2200 rpm |
| Maximum torque: 1450 Nm at 1300-1600 rpm |
| Number of cylinder: 6 |
| Displacement: 9.726 L |
| Bore: 126 mm |
| Stroke: 130 mm |
| Specific fuel consumption: 198 g/kWh |
| Engine oil filling quantity: 23 l |
| Cooling system filling quantity (long-term filling): 40 l |
| Double cylinders air compssor |
| Rigid fan |
| Transmission | HW19710,10 forwards and 2 reverses,manual gearbox |
| Ratio:14.28,10.62,7.87,5.88,4.38,3.27,2.43,1.8,1.34,1.00,13.91 ®,3.18® |
| Change the oil in the rotary gear box (transmission) after you have drive 2000-4000 kilometer |
| Front Axle | HF9,Steering with doubleT-cross section beam |
| Rear Axle | Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . |
| Model:HC16 |
| Tire |
| 12R22.5,including one spare tire |
|
|
|
| Mixer volume | 16m3 |
