Standard Heavy Duty Short Pitch Drive Chains, Transmission Chains, ANSI B29.1

Hangzhou WELLE Technology:

- WELLE Technology focuses on manufacturing and supplying quality various sorts Chains and corresponding Drive Components meet customers' in industry area worldwide.
-With our experiences of manufacturing, industrial support and service, and international trade from almost 20 years, we have enough know-how to support your business. We can communicate with you in English and in German.
- Nonstandard products manufacturing ist our highlights. Our technical understanding and advantages can help you to develop your business.

Product Descrption of Drive Chains /Transmission Chains:

Materials:
- Our products are made of big range materials, e.g. 20Mn, 40Mn, 40Cr, 45Mn, 30GeMnTi, stainless steel, etc
- After specification and drawings of customers

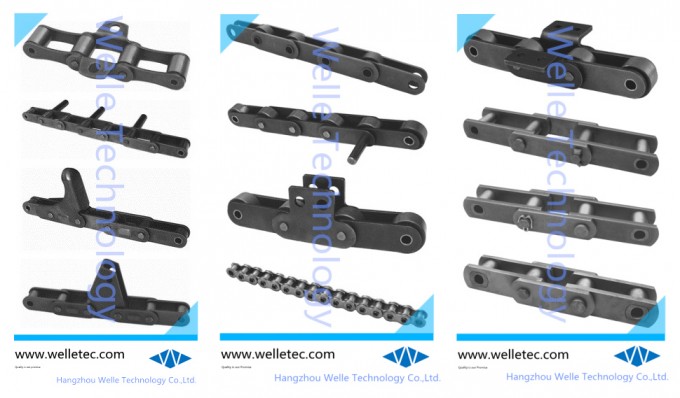

- Example drawings:





Standard Drive Chains /Transmission Chains:
- Different drive/transmission chains types in DIN ISO ANSI standard available, e.g.

No.	Product types in DIN/ISO/ANSI Standard
1)	Short pitch standard roller drive chains /transmission chains -basic/ double row/ triple row in ANSI B29.1 and DIN8188 (ISO606): DIN/ISO >> 04C-1/2/3, 06C-1/2/3, 08A-1/2/3, 10A-1/2/3, 12A-1/2/3, 16A-1/2/3, 20A-1/2/3, 24A-1/2/3, 28A-1/2/3, 32A-1/2/3, 36A-1/2/3, 40A-1/2/3, 48A-1/2/3, etc. DIN/ISO >> 05B-1/2/3, 06B-1/2/3, 08B-1/2/3, 10B-1/2/3, 12B-1/2/3, 16B-1/2/3, 20B-1/2/3, 24B-1/2/3, 28B-1/2/3, 32B-1/2/3
2)	Double pitch standard drive chains /transmission chains DIN ANSI: DIN/ISO (ANSI) >> 208A, 208B, 210A, C210B, 212A, 212B, C216A, 220A, 224A, etc.
3)	Heavy duty short pitch standard drive chains /transmission chains, ANSI B29.1: DIN/ISO >> 08AH-1, 10AH-1,12AH-1, 16AH-1, 20AH-1, 24AH-1, 28AH-1, 32AH-1, 36AH-1, 40AH-1, 48AH-1,
4)	Short standard cotter pin pitch rollerdrive chains /transmission chains: DIN/ISO >> 10A-1/2/3, 12A-1/2/3, 16A-1/2/3, 20A-1/2/3, 24A-1/2/3, 28A-1/2/3, 32A-1/2/3, 36A-1/2/3, 40A-1/2/3, 48A-1/23, etc.
5)	Side curved drive chains /transmission chains: DIN/ISO >> 06BSB, 08BSB, 10BSB, 40SB, 43SB, 50SB, 60SB, 80SB, 06BSBSS, 08BSBSS, 10BSBSS, 35SBSS, 40SBSS, 43SBSS, 50SBSS, 60SBSS, 80SBSS, etc.
6)	Heavy duty curved drive chainDIN8182/8183-ANSI 29.1: DIN/ISO >> ISO2010, 2512, 2814, 3315, 3618, 4020, 4824 - Pitch size from 63.5mm up to 177.8mm - Customized manufacturing available
7)	Toothed chaindrive chains /transmissionchains: DIN/ISO >> CL06, CL08, CL10, CL12, CL16, CL20 ANSI>> SC06, SC08, SC10, SC12, SC16, SC20
8)	Engine timing chains: DIN/ISO >> 25, 25H, C25, 219, 219H, 270H, T8F, T3F ,CL04
9)	Coupling drive chains: DIN/ISO >> 4012, 4014, 4016, 5014, 5016, 5018, 6018, 6020, 6022, 8018, 8020, 8022, 10022, 12018

Nonstandard Conveyor Chains:

No.	Customized Drive/Transmission Chains:
1)	Oildrive chains /transmissionchains with single row or double row- customized: - Pitch size from 25.4mm up to 76.2mm - Customized manufacturing available
2)	Heavy duty curveddrive chains /transmissionchainsDIN8182/8183-ANSI 29.1: DIN/ISO >> ISO2010, 2512, 2814, 3315, 3618, 4020, 4824 - Pitch size from 63.5mm up to 177.8mm - Customized manufacturing available
3)	PIVdrive chains /transmissionchains: - Pitch size from 12mm up to 36mm - Customized manufacturing available
4)	Motorcycle drive chains (with O/X-form sealing ring ): - Pitch size from 12.7mm up to 19.05mm - Customized manufacturing available
5)	Any other customized chains type after technical communication with customers

Customization and Specifications:
- After technical communication about exactly customer request, Welle Technology can provide the right and quality products to customer. Customization after customer specifications is absolutely our advantages. This makes us to reach our target: Quality is our Promise.

Product Ranges of Machinery Chains:
- Conveyor Chains
- Driving Chains
- Automobile Chains/Motorcycle Chains
- Agricultural Chains
- Leaf Chains &Hoisting Chains
- Escalator Chains
- Stainless Steel Chains
- Bulk Material Conveyor Chains
- Nonstandard Customized Machinery Chains & Conveyor Chains


Corresponding Drive Components, which is fitting for different types of chains :
- Sprocket Wheel
- Spur gear
- helical gear
- Bevel gear
- Pulley
- Worm wheel
- Coupling
-Spline shaft


Professional Process:
We work professional, communicative and systematic for providing our quality products and best technical support/service.


Our Adventages:
- 100% quality assurance: High-qualitysources and supply
- Cost-effective products: best performance for your machines with the most cost-effective investment
- We have experienced Know-How to support our customers
- Our long term Experiences: help you to find better solutions
-Exactly delivery time control
- Convenient communication with quick response

Contact:
If you have any request or questions about our products, please contact us:
Mr. Shi or Mrs. Xu
Telephone Office: 0086-571-85166983
Fax: 0086-571-85166036

Expected More:www.welletec.com
