FM3.5-3 Self Loading Concrete Mixer Trucks

Introduction ofFM3.5-3 Self Loading Concrete Mixer Trucks

Mobile concrete mixing station is an on-site construction vehicle that combine feature with concrete batch processing equipment, concrete transport and concrete mixing station. This cutting edge machine will lead the concrete industry in next decade.
Put cement, sand and gravel into the drum and let the mobile concrete mixing station do the rest.
A small concrete station can easily formed by 2 mobile concrete mixing stations, 1 cement tank and 1 water tank.
Low upfront cost
Reduce transportation cost
Minimize labor cost
Maximize job efficiency

Features ofFM3.5-3 Self Loading Concrete Mixer Trucks

Mobile concrete mixing station feature combines self-loading, weighing, mixing and discharging. It can maximize and improve the job efficiency and reduce the production cost and time.
High Efficiency
Capacity:14 cubic meters(18.31 cubic yards)/hour;
110 cubic meters (143.87 cubic yards)/day;
33000 cubic meters(43,162.44 cubic yards)/year
Labor-saving
4 wheel drive, 4 wheels steering
Accurate Electric Weighing System
The mixing unit is slewing hydraulically through 270° for high discharge over 1.8m to the four sides of the vehicle
Loading, Weighing, Pumping, Mixing, Delivering, Discharging

Parameter ofFM3.5-3 Self Loading Concrete Mixer Trucks

Name	Item	Specification
Vehicle	Net	8800kg
	Gross	16000kg
	Transmission	Hydraulic
		4*4
	Brake	HydraulicBrake
		FrontandRearIndependentSystem
	Chassis	OffRoad,Chinatopbrandaxle
	DistanceofFront/RearWheelbase	1905mm
	Wheelbase	2155mm
	Loader	Capacity	0.6m³
		Control	Hydraulic
	TileAngle	30%
	Speed	High	0-20km/h
		Low	0-9km/h
	Min.TurningRadius	6.5m/R
	Tire	16/70-20
	Dimensions(L*W*H)	7011*2441*3310(MM)
DiselEngine	Type	A8QW0
	RatedPower/rpm	85KW/2200rpm
	Max.Torque/rpm	425N.m/1400rpm
	Cylinder	4-cylinder/4.836L
	Bores	108mm
	CoolingType	Watercooling
	FuelConsumption	225g/kw.h
	Starter	Electric
	EmissionStandard	ChinaII
MixingDrum	DrumCapacity	3.5m³,14m³/hr.
	BankAngle	16°
	RotationSpeed	10-16r/min
	AngleofDrumRotation	>=270°
Chute	SwingAngle	>=60°
	AngleControl	Hydraulic
	Size	Long:106cm
		Short:40cm

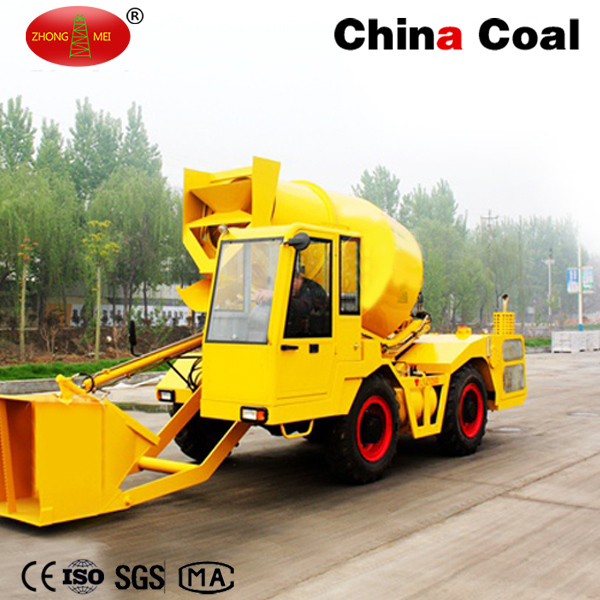

Photos OfFM3.5-3 Self Loading Concrete Mixer Trucks
