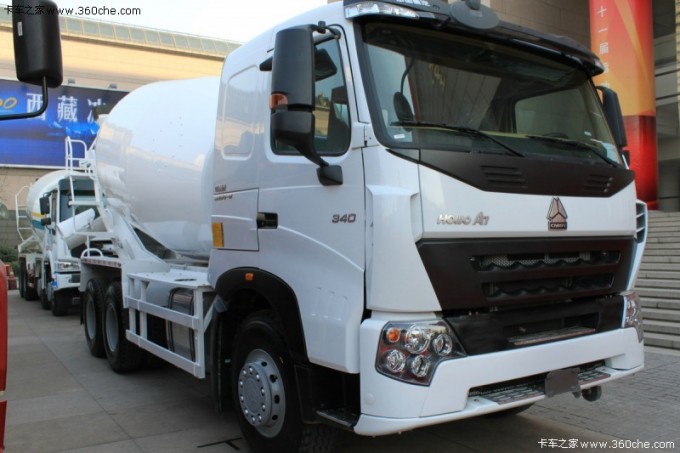

New Generation Mixer Undercarriage with Great Performance.
Cast Driving Axle with High Bearing Capacity.
European-Style Design with Elegancy and Comfort.
Mass Parameter | Curb Weight(kg) | 13770 | |
Maximum Allowable Total Mass(kg) | 25000 | ||
Towable Total Mass(kg) | |||
Dimensions | Overall Dimensions(mm) | Length | 9335 |
Width | 2496 | ||
Height | 3800 | ||
Wheel base(mm) | 3825+1350 | ||
Minimum Ground Clearance(mm) | 315 | ||
Performance Parameters | Maximum Speed(km/h) | 78 | |
Economic Speed(km/h) | 58 | ||
Maximum Gradability(%) | 55.5 | ||
Minimum Turning Diameter(m) | 17.1 | ||
Recommended | Engine | Model | D10.29-31,D10.30-31 |
Net Power(kW)/Rotating Speed(r/min) | 209/1900,211/1900 | ||
Maximum Torque(Nm)/Rotating Speed(r/min) | 1290/1200-1500,1340/1200-1500 | ||
Gearbox | HW10,HW12,HW16 | ||
Clutch(mm) | 430 | ||
Rear Axle | Type | HC16 | |
Gear Ratio | 4.42,4.8,5.73 | ||
Oil Tank(L) | 400 | ||
Chassis Cross Section(mm) | 300 | ||
Suspension (Frontal & Rear Springs) | 9/12 | ||
Tires | 11.00-20,11.00R20,12.00-20,12.00R20 | ||
