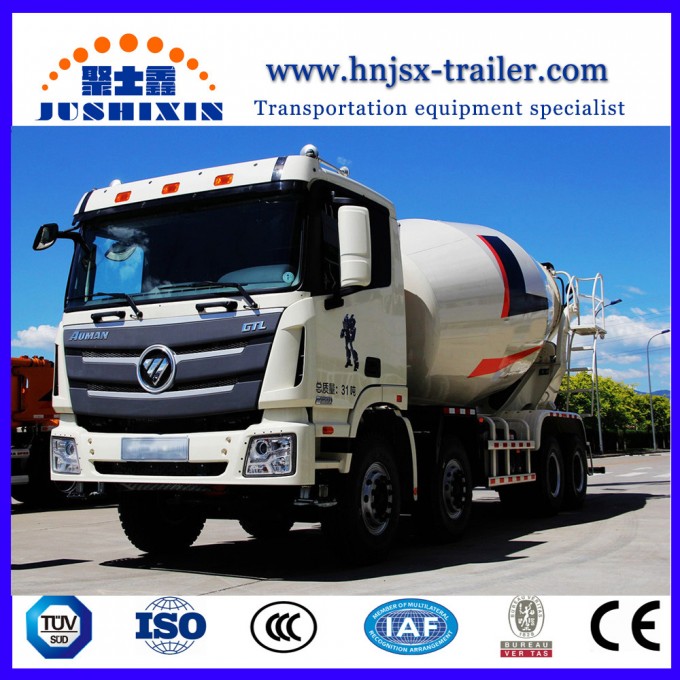

Clw Foton High Quality Co
ncrete Mixer Truck for Sale
Advantage for our concrete mixing Truck[Well-designed to meet the individual needs]
1.Fully integrated into the customer perso
nalized demand and user-friendly design concept,which is the high-end
products of the co
ncrete mixing transportation equipment.
2.Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lower unloading
residual rate,large volume,high efficiency.
3.Mixing body and leaf are all made from special fine grain wear plate,Integral forging raceway,which all can
guarantee longer&enough life-span.
4.Mixing leaf has the excellent mixing function to make the finished co
ncrete more uniformly,and to maintain the
quality of the concrete;High strength,toughness beam, minimizing vibration.
5.The fourth axle adpoting American patented technical air suspension,can freely lift and down the lifting axle
according to the weight and road environment.
| Size | Dimension(L×W×H)(mm) | 8715*2496*3800 |
| parameters | Wheel base(mm) | 3600+1350 |
| Frontoverhang/rearoverhang(mm) | 1500/2240 |
| Approachangle/departureangle(°) | 16/26 |
| Mixroundcubage(m3) | 12m³(optional) |
| Obliquityofthedrum(0) | 15/13 |
| Weightparameters | GrossVehicleweight(kg) | 12800 |
| Permissibleloadingcapacity | 12070 |
| Vehicle+loadingcapacity(kg) | 30000 |
| Axleload(kg) | 7000/18000 |
| Work | Rotaryspeedofthedrum(r/min) | 0-18 |
| parameters | Inputspeed(m3/min) | ≥3 |
| Outputspeed(m3/min) | ≥3 |
| Therateofremaining | ≤1% |
| Supplymode | Atmospherictype |
| Volumeofthewatertank | 300L |
| Hydraulicsystem | Pump | importPARTS |
| Motor | importPARTS |
| Retarder | importPARTS |
| Engine | Model | WD615.69 |
| Ratedenginepower(kw/rpm) | 336HP |
| Max.torqueN.m/(r/min) | 1280/1300-1600 |
| GearBox | Model | - |
| Brakesystem | Servicebrake | Dualcircuitbrake |
| Parkbrake | Springenergyaircutbrakeonfrontshaftandrearaxle |
| other | Max.speed(km/h) | 90 |
| Tire | 12.00R20 |
| driveform | 6×4 |
Additional information:1.The parameters of the above products are just common configurations, not absolute.The specific configuration
of the product will be executed according to your needs.
2.We also do OEM and ODM.If you are interested in understanding our abilities and ways of cooperation, we are
always welcome.
3.The final price of all products is determined by the product co
nfiguration you choose.Therefore, if you are
interested in purchasing products, please co
ntact us in time.
about the details:
In order to produce a high quality product, the details are very important.The important parts we use, such as
engines, hydraulic pumps and speed reducers, are well-known brands in China and even the world.
|
Q:Why did I choose you?A:Because we have rich experience in foreign trade, so we can provide timely and high-quality service to different
customers.We adhere to the principle of "customer first".
Q:Is the quality of your products guaranteed?A:You can rest assured of that.Our products have professio
nal certification, such as ISO, CCC, IAF, etc.Besides,
you can come to our factory for a visit and we will have a very good reception.
Q:How about the after-sales service?A:We also have the general after-sales service.In addition, when you encounter problems that cannot be solved,
we will have technical perso
nnel to help you solve them in your country
Q:Do you have a discount on your price?A:The price of a single product is determined by the product co
nfiguration you choose.If your order is large or
can be cooperated for a long time, we will give you a satisfactory price.
