| SINOTRUK | | | | | | HOWO |

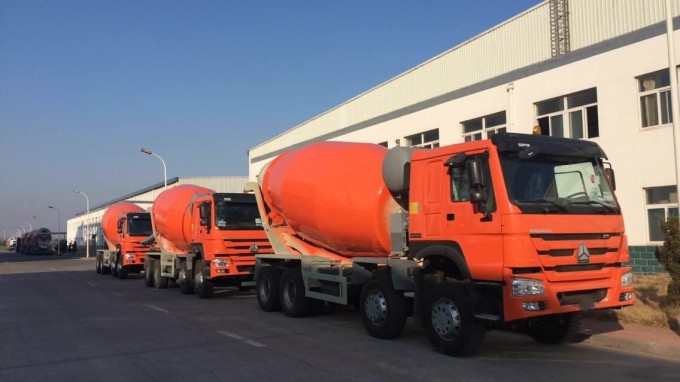

| Specifications HOWO SERIES ConCRETE MIXER TRUCK Driving Type 8x4 | | | | | | |
| Model | ZZ1317N3261W |
| |
| Engine | Make: SINOTRUK | | | |
| Diesel 4-stroke direct injection diesel engine | | |
| Engine model: WD615.47, Euro II emission standard | | |
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | |
| Maximum output: 371 hp (273 Kw) at 2200 rpm | | |
| Maximum torque: 1460 Nm at 1300-1600 rpm | | |
| Number of cylinder: 6 | | | |
| Displacement: 9.726 L | | | |
| Bore: 126 mm | | | |
| Stroke: 130 mm | | | |
| Specific fuel consumption: 195 g/kWh | | |
| Engine oil filling quantity: 19 l | | | |
| Cooling system filling quantity (long-term filling): 40 l | | |
| Thermostat with 71ºC opening begin | | |
| Twin cylinder air compssor | | | |
| Transmission | HW19710T, synchromesh, 10 forwards and 2 reverse | | |
| Ratio: 14.36 10.66 7.88 5.82 4.38 3.28 2.44 1.8 1.33 1 14.01(R1) 3.2(R2) | | | | |
| Propeller Shaft | | Double universal joint propeller shaft with gear-shaped coupling flange | |
| Front Axle | HF9, Steering with doubleT-cross section beam | | |
| Rear Axle | HC16, Central reduction with hub reduction and with differential locks between wheels and axles . |
| Ratio:4.8 | | | | |
| Chassis | frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members |
| Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis | |
| | | | |
| Steering | ZF power steering, modol ZF8118, hydraulic steering with power assitance | |
| | | | |
| Brakes | Service brake: dual circuit compssed air brake | | |
| Parking brake (emergency brake): spring energy, compssed air operating on front shaft and rear wheels |
| Auxiliary brake: engine exhaust brake | | |
| ABS control system: for option | | | |
| Wheels & Tyres | Tire: 12.00R22.5, tubeless radial tyre, 12 nos+1 spare tire | |
| | | | |
| Driver's Cab | HW76 Long cab,new facelift, with two seats and one bed, 2-arm windscreen wiper system with three speeds, |
| damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, |
| air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber |
| | | | |
| Electrics | Operating voltage: 24 V, negative grounded | | |
| Starter: 24 V, 5.4 Kw | | | |
| Alternator: 3-phase, 28 V, 1500 W | | |
| Batteries: 2 x 12 V, 165 Ah | | | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | |
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators |
| of compssed air pssure, coolant temperature, engine oil pssure and battery charging | |
| Dimensions mm | Wheel base | | | 1800+3200+1350 |
| Front/Rear wheel track | | | 2041/1830 |
| Front/Rear overhang | | | 1500/2463 |
| Overall dimension(L*W*H) | | | 10304*2496*3999 |
| Weight kg | Dead weight | | | 14000 |
| Gross vehicle weight | | | 50000 |
| Front axle loading capacity | | | 2*9000 |
| Rear axle loading capacity | | | 2*16000 |
| Performance | Maximum driving speed (km/h) | | | 90 |
| Maximum gradeability (%) | | | 30 |
| Minimum ground clearance (mm) | | | 298 |
| Fuel consumption (l/100 km) | | | 40 |
| Parameter of the drum | Mixing Capacity m³ | | | 12 |
| Charge speed m³/min | | | ≥3 |
| Discharge speed m³/min | | | ≥2 |
| Surplus % | | | ≤0.5 |
| Drum speed rpm | | | 0~18 |
| Drive system | Gearbox | | | PMP PMB 7.5SP |
| Hydraulic pump | | | PMP PMH P110 |
| Hydraulic motor | | | PMP PMH M110 |
| Water supply system | Water tank volume L/Form of | | | 400/Electric water pump |
