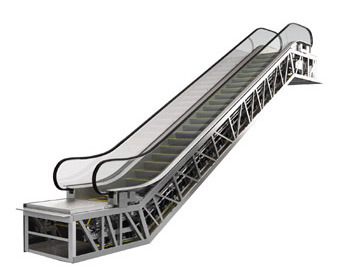

GRE20 escalator

GRE20 series of escalator with 16 meter maximum rise can operate normally in outdoor environment.

Feature:

Super-consciousness aesthetic design meets the characteristics of human physiology.

Streamlined handrail system in stainless steel reflects noble style of western Europe with its 180 degrees

Arc end and black inlet.

Advanced control system and driving device, superior driving chain, excellent workmanship assures the
Comfortable operation.

The safety protection functions as many as 21 items fully comply with national and European standard.

Light-weight and high-strength truss structure assures the equipment of completer rigidity.

Automatic lubrication system lubricates all kinds of driving components, which prolongs products'
Operation life greatly.

The application of VVVF drive(optional) makes escalator (moving walk)be a repsentation energy saving product. By checking the traffic flow timely by means of photo

Electrical sensor located at the entrance of escalator, achieving auto moving with great energy saved.
Microcomputer controlled system performs with rapid calculation speed, high reliable moving, and also
With failure code fixed, easy to be maintained.

Drive device arranged vertically assures enough space and convenience for maintenance.

Application	Indoor. 16-hr operation daily
Height (m)	≤ 7.2(6)
Inclination (° )	30(35)
(mm) Step width	600/800/1000
Horizontal steps	2/2 3/3(only for 30° )
Speed(m/s)	0.5
Capacity (per. /h)	4500/6750/9000
Main power	380V/50Hz/3P
Balustrade	Tempered glass(10mm)
Handrail bracket	Stainless steel
Handrail	Black
Balustrade height(mm)	900
Inner & outer decking	Hairline St. St.
Skirting	Wear resistant coating steel sheet
Step	Stainless steel
Landing plate	Stainless steel (anti-sliding)
illumination	lighting under upper & lower landing steps
Indicator	Failure code indicator on control cabinet
Operation	Emergency stop button Key switch Inspection operation

Optional configuration

Different components with individual performance and multi-functional devices ensure our escalator and moving walk can meet various customer demands.

Application	Semi-outdoor/outdoor. 16-hr operation daily
Handrail bracket	Aluminum profile
Handrail	Green, red, blue, yellow
Balustrade height	1000mm
illumination	Skirting lighting
	Comb lighting
Monitor	Handrail speed monitor
	Handrail break monitor
Indicator	Indicator on outer decking
Direction indicator	Running direction indicator on outer decking
Step(escalator)	One-piece aluminum
Skirting	Hairline St. St.
Landing plate	Aluminum alloy (anti-sliding)
Energy control	VVVF
Lubrication	Automatic lubrication / electric lubrication
External cladding	Hairline St. St. / Painted steel /Glass/Mirror st. st.

Safety devices

Static electricity protection of step (pallet)	Eliminate static electricity raised from running of the steps (pallets).	standard
Static electricity protection of handrail	Eliminate static electricity raised from running of the handrail.	standard
Emergency stop button on entrance	Push the emergency stop button to stop the escalator (moving walk) against emergency raise.	standard
Handrail entry safety protection	Protection against risk of other objects being jammed into handrail entry.	standard
Over speed protection	Protection against risk of speed being over 20% of rated speed.	standard
Under speed protection	Protection against risk of speed being less than 20% of rated speed.	standard
Unintentional reversal protection	Protection against risk of unintentional reversal of the direction of travel.	standard
Phase failure protection	Protection against risk of phase failure.	standard
Short circuit protection	Protection against risk of short circuit.	standard
Over-load protection	Protection against risk of motor continually over load.	standard
Step(pallet)sagging protection	Protection against risk of steps (pallets) being breakage and sagging.	standard
Step(pallet)chains safety protection	Protection against risk of step (pallets) chains being breakage of undue elongation.	standard
Comb safety guard	Protection against risk of foreign objects being trapped at the point where the step (pallet) enters the comb.	standard
Inspection socket	To provide voltage to inspect or maintain.	standard
Machine room guard	One safety plate separates machine room from movable parts such as step to protect service personnel.	standard
Emergency stop button on control cabinet	Push the emergency stop button to stop the escalator (moving walk) against emergency raise when inspection and maintaining.	standard
Auxiliary brake	Auxiliary brake will act and stop the escalator (moving walk) in case of main drive chains breakage or the steps (pallets) or handrail changing from psent direction of motion.	Optional
Handrail guard	Protection against risk of speed change and breakage of handrail.	Optional
Skirting guard	Protection against risk of foreign objects being jammed into clearance between steps (pallets) and skirting.	Optional
Main drive chains safety protection	Protection against risk of drive chains being breakage or undue elongation.	Optional
Skirting brush	Brushes on skirting to enhance the passenger' s safety.	Optional
