Detailed Description
Our products rely on the current European and Chinese Standards.
It applies the novel materials and the advanced technology to design and manufacture the goods.
It combines with the design style of the Germany romantic sentiment to ensure the high quality of the products and the elegant coziness.
It is applicable for the occasions with large flow of passengers such as the shopping center,supermarket,subway,airport etc.
It adds a bright and beautiful flowing scenery for your constructions.
1 | Emergency Stop Button | If pssed in a emergency, stops the moving escalator/ conveyor immediately. | Standard |
| 2 | Motor Speed Device | If the speed above normal speed, stops the moving escalator/ conveyor. |
| 3 | Motor Over Heat Device | Stops the moving escalator/ conveyor, if the motor is over heat |
| 4 | Driving Chain Safety Device | Stops the moving escalator/ conveyor, if the driving chain breaks or excessively looses. |
| 5 | Handrail Inlet Safety Device | Stops the moving escalator/ conveyor, if hand or object is pulled into the handrail inlet. |
| 6 | Step Sagging Device | Stops the moving escalator/ conveyor, if step are operating in abnormal manner. |
| 7 | Non Reversing Safety Device | Stops the moving escalator/ conveyor, if its direction of travel is reversed. |
| 8 | Maintenance Switch | Cuts off operating circuits when maintenance inspection or repair is performed. |
| 9 | Absent or mistaken epsilon phase device | Escalator/ conveyor can't operate, if Absent or mistaken epsilon phase device |
| 10 | Comb plate safety device | Stops the moving escalator/ conveyor, if objects are caught between comb plate and pallet treads. |
| 11 | Motor braking safety device | Help the motor brake properly |
| 12 | Skirt Guard Safety Device | Stops the moving escalator/ conveyor, if objects are caught between pallet skirts. |
| 13 | Handrail Speed Monitoring Device | Stops the moving escalator/ conveyor, if handrail speed is below normal due to handrail breakage or elongation. |
| 14 | Alarm bell | Ringing alarm bell, if escalator/ conveyor operate normally |
| 15 | Auto- lubricate device | Auto- lubricate to escalator/ conveyor |
| 16 | Pallet Demarcation | Yellow two demarcation lines provide a visual and physical warming of the pallet edges |
| 17 | Self-diagnose Device | Self-diagnose the whole system, if escalator/ conveyor run normally | Option |
| 18 | Skirting illumination | Lamps are provides at the both sides of skirt panel
|
****************************************************
For detail information, please co
ntact us.
****************************************************
Our factory:

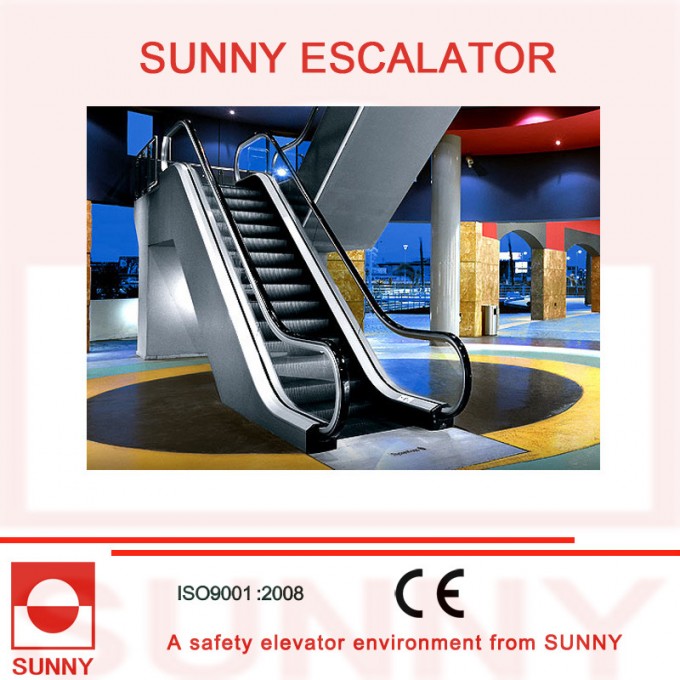

Product Image
