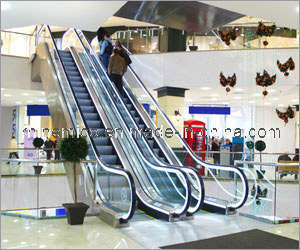

Srh Escalator/ Escalator Cost/Escalator Price

*Quality Supme-Service Perpetual

===== Technical Parameter =====

1. Angle of Inclination: 30° / Rated Speed: 0.5m/s /
Step Width: 600mm
Capacity: 4500p/h
Travel Height: 3000~7200mm
Motor Power: 8~11kw

Step Width: 800mm
Capacity: 6750p/h
Travel Height: 3000~7200mm
Motor Power: 8! 15kw

Step Width: 1000mm
Capacity: 9000p/h
Travel Height: 3000~7200mm
Motor Power: 8~15kw

2. Angle of Inclination: 35 ° / Rated Speed: 0.5m/s /

Step Width: 600mm
Capacity: 4500p/h
Travel Height: 3000~6000mm
Motor Power: 8kw

Step Width: 800mm
Capacity: 6750p/h
Travel Height: 3000~6000mm
Motor Power: 8~11kw

Step Width: 1000mm
Capacity: 9000p/h
Travel Height: 3000~6000mm
Motor Power: 8~11kw

GRBS bed elevator specifications
Persons	Rated Capacity (KG)	Rated Speed (m/s)	Net size of car(mm)	Net size of door(mm)	Hoistway size (mm)			Max travelingheight (m)
			C.WxC.D	D.WxD.H2p center opening	H.WxH.D	HR.H	P.H
13	1000	1.0	1100x2100	1100x21002Ptelescopicopening 1000x21002Pcenter opening	2100x2500	4500	1500	45
		1.6/1.75				4600	1700	96
		2.0				4900	1800	108
21	1600	1.0	1400x2400	1100x21002Ptelescopicopening 1000x21002Pcenter opening	3050x1850	4500	1600	45
		1.6/1.75				4600	1700	96
		2.0				4900	1800	108
24	1800	1.0	1500x2500	1200x21002Ptelescopicopening 1100x21002Pcenter opening	3050x2000	4500	1500	45
		1.6/1.75				4600	1700	96
		2.0				4900	1800	108
26	2000	1.0	1570x2700	1300x21002Ptelescopicopening	3050x2200	4600	1500	45
		1.6/1.75				4700	1700	96
		2.0				5000	1800	108
