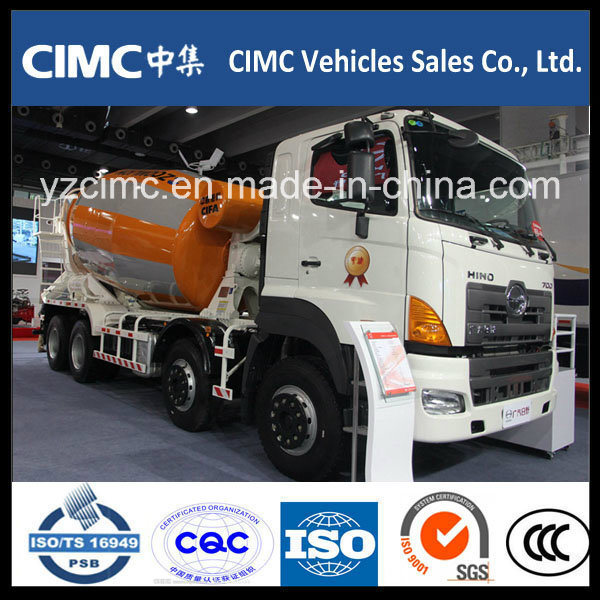

Hino 8X4 Concrete Mixer Truck 12 to 14cbm

Hino engine reach both EURO III and EURO IV emission, mixer tank from 12 to 14 CBM for customer needs.

Engine Make: HINO P11C-VA
Diesel 4-stroke direct injection diesel engine, Electronic control, SCR
Engine model: P11C-VA , Euro III or Euro IV emission standard
6-cylinder in-line, turbo-charging and intercooling
Maximum output: 350 hp (259 Kw) at 2100 rpm
Maximum torque: 1483 Nm at 1100-1300r/min
Number of cylinder: 6
Displacement: 10.52 L
Bore: 122 mm
Stroke: 150 mm
Specific fuel consumption: 195 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compssor
Rigid fan
Transmission EATON FULLER RT-11509C, 9 forwards and 1 reverse, 1490N.m, 2600rpm
Ratio: 12.42 8.26 6.08 4.53 3.36 2.47 1.81 1.35 1 12.99 (R)
Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange
Front Axle Steering with doubleT-cross section beam
Rear Axle HINO, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
Ratio:4.625
Chassis frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members, Manganese steel
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:13 leaf semi-elliptic springs, bogie spring and stabilizer
Aluminium fuel tank
Brakes Service brake: dual circuit compssed air brake
Parking brake (emergency brake): spring energy, compssed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Wheels & Tyres Tire: 11.00R20, all steel radial tyre
Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,
24V USB, air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber, Air suspension dirver seats
