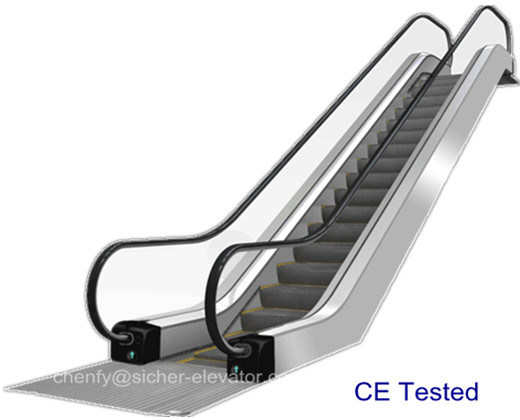

Srh Ce Tested En115 Proved China Stair Escalator

SRH CE tested EN115 proved China stair escalator
Product Description

Safety Protection Function for Escalator

Safety devices
Static electricity protection	Eliminate static electricity raised from running of the steps (pallets).	Standard
Static electricity protection of handrail	Eliminate static electricity raised from tunning of the handrail.	Standard
Emergency stop of button on entrance	Push the emergency stop button to stop the escalator (moving walk) against emergency raise.	Standard
Handrail entry safety protection	Protection against risk of the sundries being jammed into handrail entry.	Standard
Over speed protection	Protection against risk of speed being over 20% of rated speed.	Standard
Under speed protection	Protection against risk of speed being less than 20% of rated speed.	Standard
Unintentional reversal protection	Protection against risk of unintentional reversal of the direction of travel.	Standard
Phase failure protection	Protection against risk of phase failure.	Standard
Short circuit protection	Protection against risk of short circuit.	Standard
over-load protection	Protection against risk of motor continually over load.	Standard
Step (pallet) loss protection	It stops when it monitors the step (pallet) loss.	Standard
Step (pallet) sagging protection	Protection against risk of steps (pallets) being breakage and sagging.	Standard
Step (pallet) chains safety protection	Protection against risk of steps (pallets) chains being breakage of undue elongation.	Standard
Comb safety guard	Protection against risk of the sundries being trapped at the comb.	Standard
Inspection socket	To provide voltage to inspect or maintain.	Standard
Machine room guard	One safety plate separates machine room from movable parts such as step to protect service personnel.	Standard
Emergency stop button on control cabinet	Push the emergency stop button to stop the escalator (moving walk) against emergency raise when inspection and maintaining.	Standard
Handrail speed- detection protection	When the step (pallets) brake distance is 1.2 times larger than the stipulated distance, it pvents it from start again.	Standard
Skirting guard	Protection against risk of foreign objects being jammed into clearance between steps (pallets) and skirting.	Standard
Floor anti-start protection	It stops when the floor plate is removed or opened.	Standard
Main drive chains safety protection	Protection of risk of drive chains being breakage or undue elongation.	Standard
Skirting brush	Brushes on skirting to enhance the passenger's safety.	Standard
Host brake detection	When it detects the release condition of the host brake, it pvents it from start before its release.	Standard

Optional Function for Escalator GRM15

Anti-crawl device	It pvents the passengers from crawling to external handrail.	Optional
Anti-skid device	It installs outer cover plate which is closed to handrail height. It pvents the passengers from accidental crawl, skid, and fall.	Optional
Arrester	It pvents the passengers from entering into the area between wall and handrail, between two escalators (moving walk).	Optional
Protection baffle	Protection baffle is set in the crossing of outer handrail edge and any obstacle.	Optional
Auxiliary brake	When it exceeds 1.4 times of the speed; the steps (pallets) and handrail running direction is opposite to the indicated direction, auxiliary brake stops the escalator (moving walk).

Standard Specification for Escalator GRM15

Application	Indoor, outdoor, 16-hr operation daily.
Horizontal Span (m)	≤150
Angle of inclination (°)	0-6 (GRM30:10/11/12M)
Step width (mm)	600/800/1000
Speed (m/s)	0.5
Main power	380V/50Hz/3P
Balustrade	Tempered glass (10mm)
Handrail bracket	Stainless steel
Handrail	Black
Balustrade height (mm)	900
Inner &outer decking	Hairline stainless steel
Pallet	Hairline stainless steel
Landing plate	Stainless steel (anti-sliding)
Illumination	Lighting under upper &lower landing steps
Indicator	Failure code indicator on control cabinet
Operation	Emergency stop button Key switch Inspection operation

Optional Specification according to your requests


Models of Escalator and Moving walk----------------------------------------------------------------------------------



Construction Sketch and Arrangement of Escalator-------------------------------------------------------------



Related Products----------------------------------------------------------------------------------------------------------------

Company Information


Sicher Elevator Co., Ltd. is aspecialized, collectivized transnational operation enterprise through investment, merger and stock restructuring.
Sicher covers an area of 147,600 square meters, with overall floorage 170,000 square meters, owns manufacturing center, R&D center, customer service center, as well as aheight 108 meters elevator testing tower with the running speed of up to 8.0 m/s. It also has introduced production facilities and inspecting equipment with world advanced levels from Germany, Italy and other countries to keep the production capacity 40,000 units as annual output, which is alarge-scale and global market-oriented manufacturing enterprise for elevators, escalators and parking system equipment.

Classical Projects at Home and abroad--------------------------------------------------------------------------------


In the picture, Sicher elevator serves as the only elevator &escalator supplier for 2010's China Expo Korea Enterprise Joint Museum,serves to cliff outdoor panoramic sightseeing in Tianping Moutain,the famous Yungang Grottoes,Beijing People's Daily Building,Shanghai Subway-- Xinmei Overpass, Longyang Commercial Plaz, Liu Haisu Art Museum, Shanxi the National Congress Meeting Center, Mingxuan International Hotel and so on.

Certificates--------------------------------------------------------------------------------------------------------------------------


Packaging &Shipping


The girder is Packed in aprotect bag,the parts in strong wooden cases, suitable for long distance ocean transportation and well protected.

Our Services

After-Sales Service
Perfect &Professional Services forelevator maintenance, elevator repair &elevator service 12 monthselevator quality guarantee &24 hours per day after-sale service will be offered strictly by Sicher Elevator! Sincerely waiting for timely departure!




FAQ
Why Choose SICHER?
1. Competitive price-High quality from German subsidiary,but with competitive price
2. Professional &quality service,Quick response,0-2 hours response in working time,1-12 hours response off work time
3. German technology from our wholly owned Germany elevator subsidiary. components from German.
4. Great reputation from customers among 46 countries
5. Best after-sale service and warranty
6. Strong R&D team,OEM&ODM both welcomed
