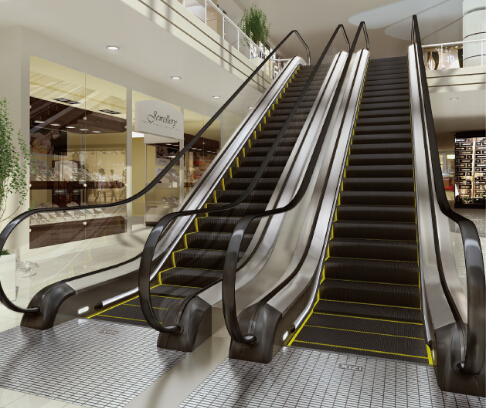

Vvvf Control Commercial Escalator with 35 Degree 1000mm/800mm/600mm Step Width

CommercialEscalator (UN-ES008)
Technical Data

Escalator	Indoor and Outdoor
Travel Height	H≤24000mm
Inclined Degree	30°, 35°
Speed	0.45m/s, 0.5m/s
Flat Step	2 flat step, 3 flat step
Step Material	Stainless steel, Aluminum (standard for outdoor)
Step Width	600mm, 800mm, 1000mm
Escalator Width	1240mm, 1440mm, 1640mm for 35 incline
Capacity (persons/h)	6000, 9000
Balustrade	Tempered glass (10mm), vertical to truss
Balustrade height	900mm, 1000mm (optional)
Balustrade bracket	Stainless steel
Handrail	C type, Black (Red, Blue, Gray)
Handrail drive	Big friction wheel
Power Supply	Motor Power: 380V±7%, 50Hz , 3 Phase
	Lighting Power: 220V, 50Hz, Single Phase
Control system	Std.(Star delta)
Energy Saving Function	Auto Restart, from stop to high speed
	Photoelectricity VF low speed , speed from low to high
	VF Restart, speed from stop to low to high
Step chain	Roller built-in
Track radius	1500/1000mm
Truss	Squre tube
Standard	GB16899-2011 CE, EN115-2008(2010A+)
Contact	86-158-6847-4159

Function








Lightness, graceful, flexible, smooth.

Uses the square tube truss, the welding is strict, the load capacity is big, the movement stable is reliable.

The simple and fashionable streamline appearance, when something unusual enters, the protection device can respond very quickly, so as to guarantee the safety of passengers and escalators.

The attractive aluminum alloyed floor plate has good anti-slip and is also very agile and safe.

It makes the escalator steps operate stably and effectively pvent step deflection or friction with skirt panel.

The inner side of the skirt panel is installed with Anti-clamp rubber bar, so as to pvent passengers from clamped or other accidents.

1. XIZI UNITE series of escalator is designed and manufactured according to the Safety Rules For Construction And Installation of Escalators And Passenger Conveyors by European Standardization Committee EN115 ( Accord with GB16899-1997).

2. It is widely used in big malls, supermarkets, subways, railway stations, business centers and other public places, it is an ideal transportation vehicle connecting different floors of the building.

3. UN-EG008 series of escalator is specially designed for the extensive use of public places, which is not only suitable for the elegant commercial buildings but also for common public buildings.

4. UN-ES008 series of escalator is specially designed for magnificently decorative buildings such as department stores, office buildings etc...Slim escalator with narrow handrail can be easily caught by passengers, which improves the comfortable sense of passengers when it runs. Its compact style is harmonious with surroundings and adding stronger modern tinge.

5. With complete specifications, graceful styles and flexible Layouts. The combination of ergonomically designing ideas make the use and maintenance work more convenient and quicker.

6. The use of high quality new materials, manufactured by the advanced technique and equipment can fully guarantee the safety and reliability, strong durability and stable performance of our products. The antislip design of stainless steel step treads improves the safety of running.

7. The adoption of advanced technique for driving system makes the escalator reach a new level in the respect of quiet and stable running and guarantees the most comfortable sense of passengers when it runs.

8. Please feel free to contact us for up-to-date information about the quotation, features and specifiations of the products or kindly submit your inquires to the inbox provided by Made-in-China
