Detailed Description

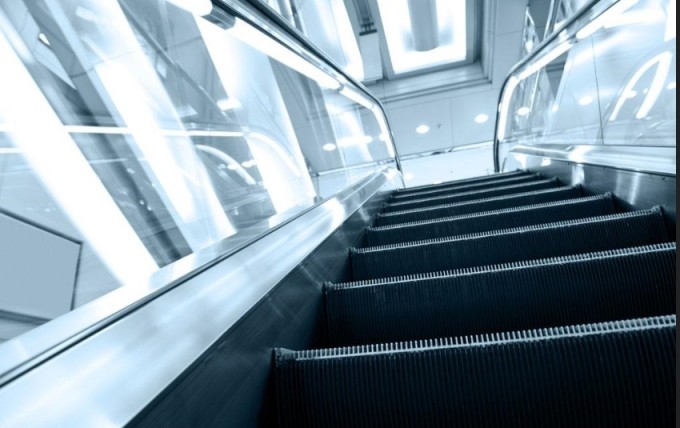

Escalator with 30 Degree 1000mm Step Width (XNFT-003)
According to current internatio
nal standard and China's standard, Syeny escalator series fully employ new material and advanced foreign technology to design and manufacture. Flat in running, low in noise, durable in use, co
nvenient in maintenance, Syeny escalator has fine structure, pcise step soute, luxurious appearance and modern flavor. A safe escalator of comfort and beauty give you leisure and pleasure every day.
| Escalator | Indoor and Outdoor |
| Travel Height | H≤30000mm |
| Step Width | 600mm, 800mm, 1000mm |
| Inclined Degree | 35°, 30° |
| Speed | 0.5m/s, 0.65m/s |
| Escalator Width | 1260mm, 1460mm, 1660mm |
| Noise | ≤65dB |
| Vibration | ≤35cm/s² |
| Horizontal step | 2 steps, 3 steps, 4 steps |
| Running | Single speed up &down reversible |
| Delivery | 40ft high container |
| Power Supply | Power 380V±7%, 50Hz, 3 phase 5 wire system
Lighting 220V, single phase |
| Energy Saving Function | VVVF, Auto start stop |
Functions| Standard safety functions |
| 1 | Emergency Stop Button | Yes | 19 | Machine Room Protect Board | Yes |
| 2 | Handrail Entry Contact | Yes | 20 | Step Light | Yes |
| 3 | Broken Step Chain Protection | Yes | 21 | Skirt Panel Contact | Yes |
| 4 | Comb Plate Contact | Yes | 22 | Step Yellow Safety Line | Yes |
| 5 | Inspection Socket | Yes | 23 | Alarm Bell When Start | Yes |
| 6 | Phase Failure and Phase Stagger Protection | Yes | 24 | Floor Plate Open Device | Yes |
| 7 | Step Sag Contact | Yes | 25 | Alarm Signs | Yes |
| 8 | Stop Button | Yes | 26 | Main Driving Chain Broken Protect Device | Yes |
| 9 | Main Power Switch | Yes | 27 | Overspeed Lowspeed Protection | Yes |
| 10 | Circuit Grounding Device | Yes | 28 | Step Static-free Device | Yes |
| 11 | Non-operational Reversal Safety Device | Yes | 29 | Handrail Belt Speed Detect Protection | Yes |
| 12 | Overload Protect | Yes | 30 | Floor Plate Open Detect Device | Yes |
| 13 | Portable Lamp and Socket | Yes | 31 | Step Missing Detect Protection | Yes |
| 14 | Handrail Belt Antistatic Device | Yes | 32 | Working Brake Open Detect Device | Yes |
| 15 | Traction Flywheel Cover Open Detect Switch | Yes | 33 | Skirt Panel Anti Clamp Device | Yes |
| 16 | Maintenance Power Supply Socket | Yes | 34 | Working Brake | Yes |
| 17 | Step Anti Bounce Device | Yes | 35 | Auto Lubricating Device | Yes |
| 18 | Safety Signs | Yes | | | |
| Optional functions |
| 1 | Blocking device | ○ | 8 | Handrail lightening | ○ |
| 2 | Anti-climb device | ○ | 9 | Direction indicator | ○ |
| 3 | Anti-climb device is Not pset. | Yes/No | 10 | Oil-water separator | ○ |
| 4 | Vertical protect board | ○ | 11 | Liquid level switch | ○ |
| 5 | Handrail disconnect protect device | ○ | 12 | Heating device | ○ |
| 6 | Brake shoe wearing detection | ○ | 13 | Cladding | ○ |
| 7 | Auxiliary brake | ○ | | | |
