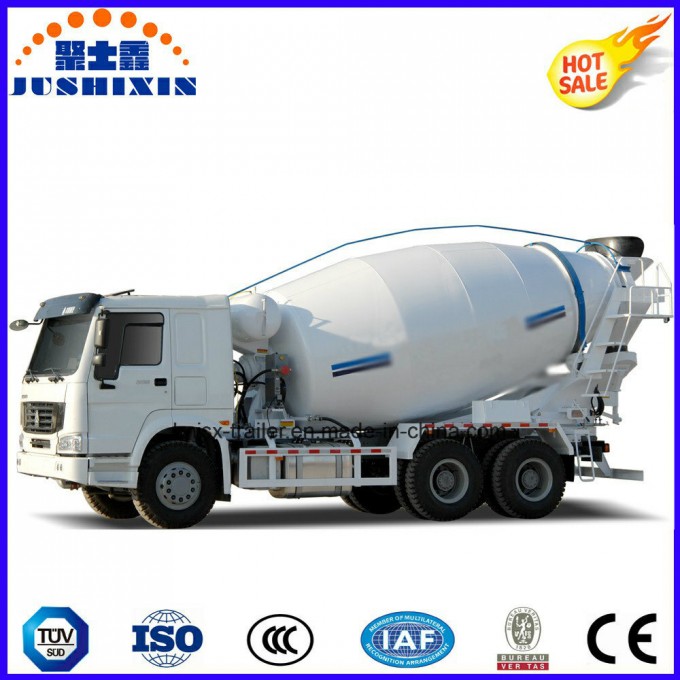

Heavy Duty 9m3 10m3, 12m3 Concrete Mixer Truck

Heavy Duty 9m3 10m3, 12m3 Concrete Mixer Truck



Advantage for our concrete mixing Truck

[Well-designed to meet the individual needs]

1.Fully integrated into the customer personalized demand and user-friendly design concept,which isthe high-end
products of the concrete mixing transportation equipment.

2.Strong Power, low fuel consumption, strong climbing ability;Strong flexibility and applicability,lowerunloading
residual rate,large volume,high efficiency.

3.Mixing body and leaf are all made from special fine grain wear plate,Integral forgingraceway,which all can
guarantee longer&enough life-span.

4.Mixing leaf has the excellent mixing function to make the finished concrete more uniformly,and tomaintain the
quality of the concrete;High strength,toughness beam, minimizing vibration.

5.The fourth axle adpoting American patented technical air suspension,can freely lift and down the
lifting axle according to the weight and road environment.

Specifications
DrivingType	6X4	ModelNo.	JSX98912
WholeDimension	8560×2496×3600mm	Wheelbase	3825+1350mm
Loadingweight	30ton	Maxspeed	90km/h
Engine
EngineNo.	WD615.47	CylinderNo.	6
Fueltype	Diesel	Emission	9.726L
Emissionstandard	EuroIV	Horsepower	350hp
Gearbox
GearboxNo.	HW19710	TransmissionType	Manual
Forward	10speed	Reverse	2speed
ConcretemixturetruckChassisandtire
Frontaxle	HF9	Frontaxleloading	9000kg
Rearaxle	HC16	Rearaxleloading	16000kg
Tires	12.00R20	Tirequantity	11,withsparetire
MixtureTank&Hydraulicsystems
Tankmaterial	Carbonsteel,Q235B	Tankthickness	5mm
PumpandMotor	Eaton	Reducer	Bongfiglioli

Additional information:

1.The parameters of the above products are just common configurations, not absolute.The specificconfiguration
of the product will be executed according to your needs.

2.We also do OEM and ODM.If you are interested in understanding our abilities and ways ofcooperation, we are
always welcome.

3.The final price of all products is determined by the product configuration you choose.Therefore, ifyou are
interested in purchasing products, please contact us in time.




about the factory:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As you
can see in the picture, the production process is very elaborate.Above all, our workers are very serious and
efficient.All I have said above is believable and guaranteed.

about the details:
In order to produce a high quality product, the details are very important.The important parts we use,such as
engines, hydraulic pumps and speed reducers, are well-known brands in China and even the world.




Hey, buddy.Please pay attention!Maybe what I said below is not very formal. I hope you can read it.I know
you want to buy this product, at least want to understand it.On this very large platform, you happen to
see my product, which is very lucky for me.So I think whether you're going to buy from me or not, but
you can get to know the product from me.If you do, I will be very happy.Anyway, as long as you want to
know the product, I will try my best to help you.
