Detailed Description

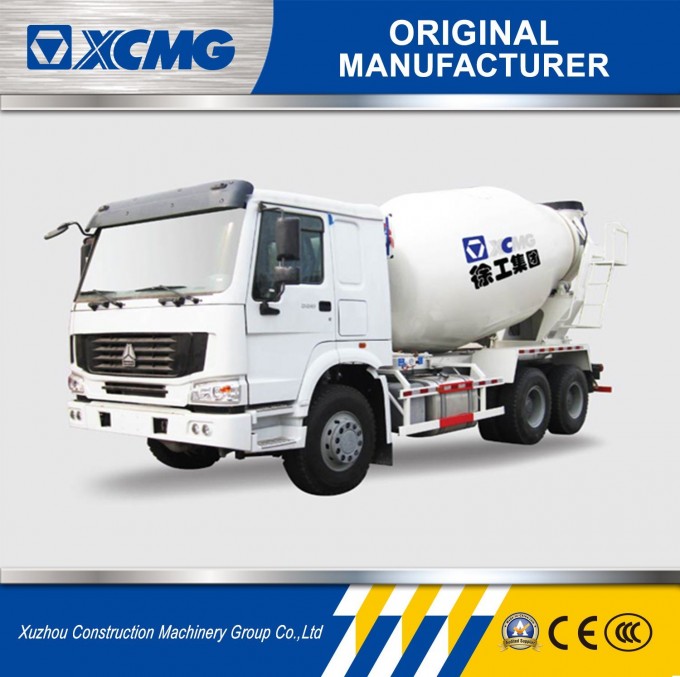

XCMG official manufacturerG15SX/G15ZZ 15m3 co
ncrete mixer truck (more models for sale)
| Model | Unit | XZJ5310GJB1 |
| Chassis brand | | |
| Total vehicle | Chassis Modrl | | ZZ1317N3268W |
| Curb Weight | kg | 17200 |
| Max.total weight | kg | 31000 |
| Driving type | | 8*4 |
| Wheelbase | mm | 1800+3200+1350 |
| Tire | | 12.00-20 |
| Ways df power take-off | | Flywheel |
| Outline dimension | (**)mm | 10500*2500*3995 |
| Engine | Model | | WD615.96E |
| Max.power | Kw/r/min | 276 |
| Output | L | 9726 |
| Emission standard | | china |
| Mixing drum performance | Geometric volume | M³ | 23.7 |
| Agitating volume | M³ | 15 |
| Max.diameter of inner drum | mm | 2432 |
| Mixing drum lenght | mm | 7009 |
| Slanting angle | . | 12 |
| Rotating speed | r/min | 0-14 |
| Feeding speed | M³/min | ≥3 |
| Discharge speed | M³/min | ≥2 |
| Discharge remnant percentage | % | <1 |
| Slump range | cm | 5-21 |
| Hydraulic system | Oil pump | | 90(),100()Rexroth 90 motor(optional),Sauer 100 motor(optional) |
| ACA542337R0B00MAD000000030D00000B()Eaton |
| Motor | | 80(),100()Rexroth 80 motor(optional),Sauer 100 motor(optional) |
| HHD543321BB1B1K1K00000B()Eaton |
| Reducer | | 577(),PMB6.5SP()Bonfiglioli557(optional),PMB6.5SP(optional) |
| Hydraulic circuit | | Closed |
| Water supply | Water tank | L | 450 |
| Way of water supply | | Air pssure type |
15 15m³ technical parameter
| Model | Unit | XZJ5310GJB2 |
| Chassis brand | | |
| Total vehicle | Chassis Modrl | | SX5315GJBT346 |
| Curb Weight | kg | 17000 |
| Max.total weight | kg | 31000 |
| Driving type | | 8*4 |
| Wheelbase | mm | 1800+3375+1400 |
| Tire | | 12.00-20 |
| Ways df power take-off | | Flywheel |
| Outline dimension | (**)mm | 10910*2500*3995 |
| Engine | Model | | WP10.375 |
| Max.power | Kw/r/min | 276 |
| Output | L | 9726 |
| Emission standard | | china |
| Mixing drum performance | Geometric volume | M³ | 23.7 |
| Agitating volume | M³ | 15 |
| Max.diameter of inner drum | mm | 2432 |
| Mixing drum lenght | mm | 7009 |
| Slanting angle | . | 12 |
| Rotating speed | r/min | 0-14 |
| Feeding speed | M³/min | ≥3 |
| Discharge speed | M³/min | ≥2 |
| Discharge remnant percentage | % | <1 |
