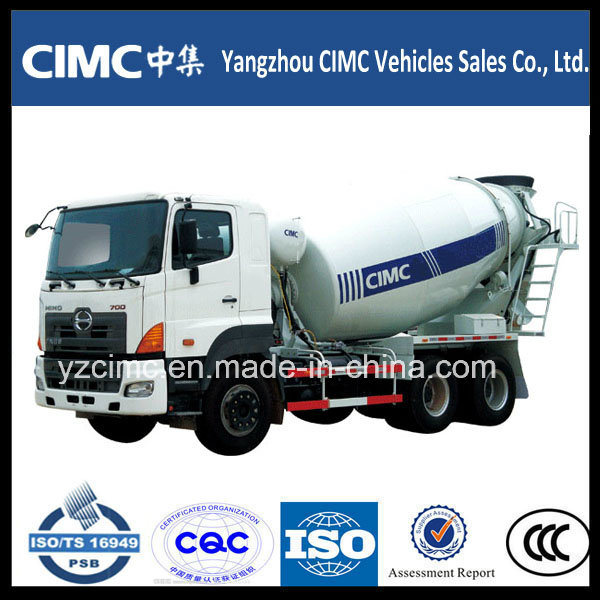

HINO 6*4 Co
ncrete Mixer Truck for Engineering Machinery
| TRUCK SPECS | CHASSIS MODEL | YC1250FS2PM , 6 x 4 ,with air conditioner,LHD |
| Engine | P11C-UJ 350HP EuropeIII |
| Engine capacity | 1020 |
| Engine power (kw) | 259 |
| Transmission | RT-11509C 9- SPEED |
| Front axle | S4310E027* |
| Driving axle | THD17 |
| G.R.V.W (Kg) | 37870 |
| Tare Weight (Kg) | 12870 |
| Loading Capacity (Kg) | 25000 |
| Max. Speed (Km/h) | 90 |
| Brakes | Air braking |
| Tires | 11R20,DUNLOP,11 units |
| Cab | Two seats with one bed |
| Outline Dimension (mm): | 9310 (L) x 2500 (W) x 3890 (H) |
| Wheelbase (mm) | 3640+1410 |
| Front axle load (kg) | 8000 |
| Rear axle load (kg) | 31000 |
| TANK SPECS | Mixer Tank Volume (m 3 ) | 9 |
| Barrel Wall Thickness | 5mm |
| Mixing Blades thickness | 4mm |
| Loading Speed (m 3 /min): | ≥ 3.2 |
| Discharging Speed(m 3 /min) | ≥ 2.2 |
| Rest rate (%) | ≤ 1 |
| Mixer Speed (rpm) | 0-16 |
| Mixer Tank angle | 13° |
| Water tank | 400L |
| Driving system | Speed Reduction System | ZF P4300 (made in Germany 100% new) |
| Pump | T90PV075 ,SA'AO(made in USA 100% new) |
| Motor | T90MF075 ,SA'AO(made in USA 100% new) |
