Detailed Description

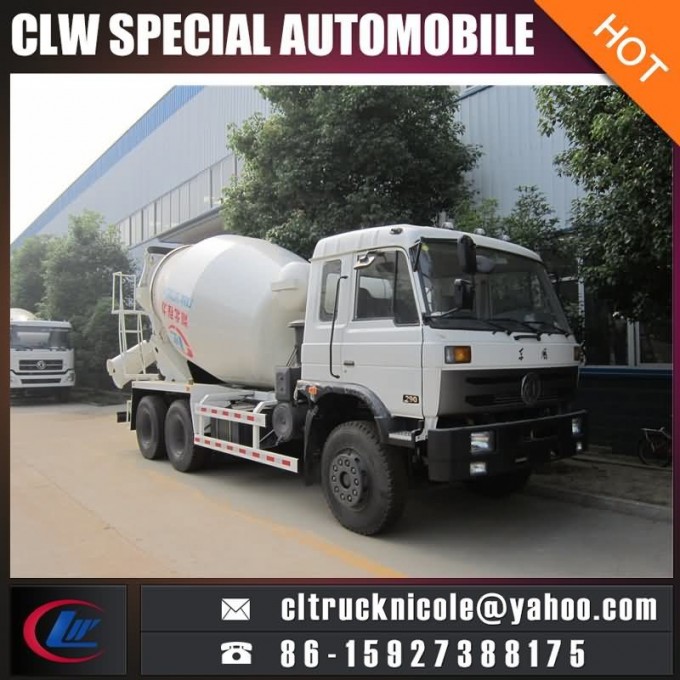

10CBM Do
ngfeng Euro 36x4 Co
ncrete Mixer Transport Truck, with chassis from Do
ngfeng and engines from Do
ngfeng Cummins. And Besides co
ncrete mixer truck, we also produce water fire truck, foam fire truck, dry powder fire truck, tank truck, road sweeper, vacuum cleaner, garbage truck, road sweeper washing truck, caravan, aerial platform truck, trailer, water truck etc. And besides Euro 3, we can also offer Euro 5, Euro 4, Euro 2engines and trucks.
Kindly check main specifications as below:
| CHASSIS | SYSTEM |
| Chassis Model | | Engine Type | CumminsC300-33 |
| F/R Track base | 1500/2520 mm | Exhaust/HP | 8300ml /300 hp |
| Number of axles | 3 | Traction System | 6*4 |
| Tire Specification | 11.00-20 | Transmission | 9-speed with over drive |
| Cab Passengers | 3 | Electric System | 24 v |
| Approx/Depart Angle | 30 /13 ° | Operation Control System | Electrically hydraulic system |
| Mini Turning Radius | 22 m | Max Speed | 90 km/h |
| DIMENSIONS(mm) | WEIGHT(kg) |
| Overall Dimensions | 10300×2500×3970 | G.V.W | 25000 |
| Drum length and diameter | 4700 /2300 | Rated Loading Capacity | 10820 |
| Wheel base | 4350+1300 | Mass In Working order | 14050 |
| EQUIPMENTCONFIGURATION |
Hydraulic system | Oil pump type | Germany Bosch Rexroth |
| Oil motor type | GermanyBosch Rexroth |
| Reducer type | Italy Bonfiglioli |
| Radiator type | China |
