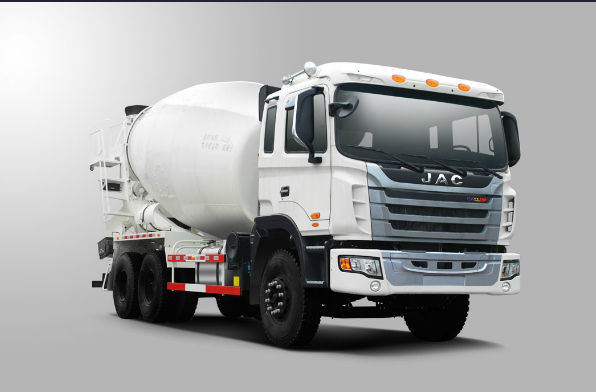

JAC 6X4 9m3 Concrete Mixer Truck

JAC Heavy Duty Truck
Excellent Value, the New Epoch of Chinese Heavy Truck
JAC heavy-duty truck integrates global advanced technology. According to the different
markets, we innovate and optimize our products endlessly and continue to enrich our
lineup to satisfy various road conditions and our costumers' demands, enabling JAC
heavy truck to become a high-end heavy truck in the international market.
Safety
The white body shell is designed in accordance with European safety standards. The energy absorption zone structure increases the anti-collision capability, thus guaranteeing passive safety;
Highly reliable
All of the chassis components have undergone CAE finite element analysis to ensure the chassis strength. The strong chassis ensures security under high loading and fast speed working conditions;
Impssive Fuel Efficiency and Environmental Performance
JAC heavy-duty trucking customers have found that they offer impssive fuel economy. Depending on load, road and driving style, it may be the best choice. Aerodynamic design feature, streamlined shape and curved surface contribute to less air drag and better fuel economy.
Local Modification for All Kinds of Environments and Temperatures
For maintaining outstanding performance in different environments and temperatures, JAC heavy trucks have been modified for alpine areas, high-temperature regions, low-temperature regions, and desert areas.
A complete range to choose from
JAC heavy-duty trucks are available with a variety of outputs and with Euro 4, Euro 3 and Euro 2 emission levels. This makes it possible for you to enjoy the unique styling, the special feeling and all the benefits of JAC heavy –duty trucks with an engine that fits your needs exactly.

Model		LJ19R7DH
Drive mode		6*4 mixer
Engine	Model	WP10.290/310 E32
	Emission levels	E-III EGR
	Max output power(Kw/rpm)	213,228/2200
	Max torque(N·m/rpm)	1160,1250/1200-1600
Transmission	Model	10JSD140,10JSD140T 10 forward 2 reverse
Rear axle: ratio/loading capacity		457 Technology 4.875,5.286,13 tons
Clutch		Single plate,dry , diaphragm spring
Braking system		Dual-circuit air brake, with exhaust assisted braking
Main Parameter	Overall dimension(mm)	9185*2545*3900
	Mixer barrel volume	9 m³
	Wheelbase(mm)	3690+1350
	GVW/GCW(Kg)	39850
	Rated load (kg)	27600
Tire		12.00R20 ,12R22.5
