Detailed Description
we can supply HOWO tractor trucks, HOWO dump trucks, HOWO co
ncrete mixer trucks and special trucks, we can supply trucks for our clients with good quality and competitive price, because we get directly support from the CNHTC factory.
We supply HOWO and HOWO A7 6x4 and 8x4 co
ncrete mixer trucks, with mixer tank capacity 8cbm, 9cbm, 10cbm, 12cbm, with the engine power 290hp, 336hp and 371hp.
| Model | 8m3 concrete mixer truck |
| Whole Vehicle Performance & Parameters | Chassis | HOWO ZZ1257N3241W |
| Curb Weight (Kg) | 13220 |
| Total Vehicle Weight (Kg) | 25000 |
| Outline Dimension(L*B*H) (mm) | 9800x2496x3880 |
| Wheelbase (mm) | 3175+1350 |
| Front Overhang (mm) | 1500 |
| Rear Overhang (mm) | 1400 |
| Min. Clearance Above Ground (mm) | 314 |
| Max. Traveling Speed (km/h) | 90 |
| Min. Turning Diameter (M) | 19.6 |
Oil Consumption per 100 km
(under limited conditions) | ≤34 |
| Vehicle Configuration | Clutch | Dry Single Disc Clutch (φ430) |
| Gear Box | HW19710 |
| Driving Type | 6*4 |
| Steering Mechanism | ZF8118 |
| Service Brake | Dual-circuit Air Brake |
| Parking Braking | Spring-powered Air-cut-off Brake |
| Auxiliary Brake | Engine Exhaust Brake |
| Tyre | 12.00R20 |
| Engine Parameters | Model | WD615.47 |
| Type | In-line 6-cylinder, Water-cooled, Supercharged, Inter-cooled, Injection Diesel Engine |
| Emission Standard | Euro II |
| Max Power (KW) | 371 HP(2200r/min) |
| Max Torque | 1350N.m |
| Mixing Drum Parameters | Max Mixing Cubage (m3) | 10 |
| Feeding Speed (m3) | ≥3.5 |
| Discharging Speed (≥m3) | ≥3 |
| Leftover Rate | Nearly Zero |
| Max Rotating Speed (r/min) | 0~14 |
| Mixing Drum Obliquity (°) | 13.5 |
| Max Mixing Drum Diameter (mm) | φ2162 |
| Speed Reducer | Italian Top P68 |

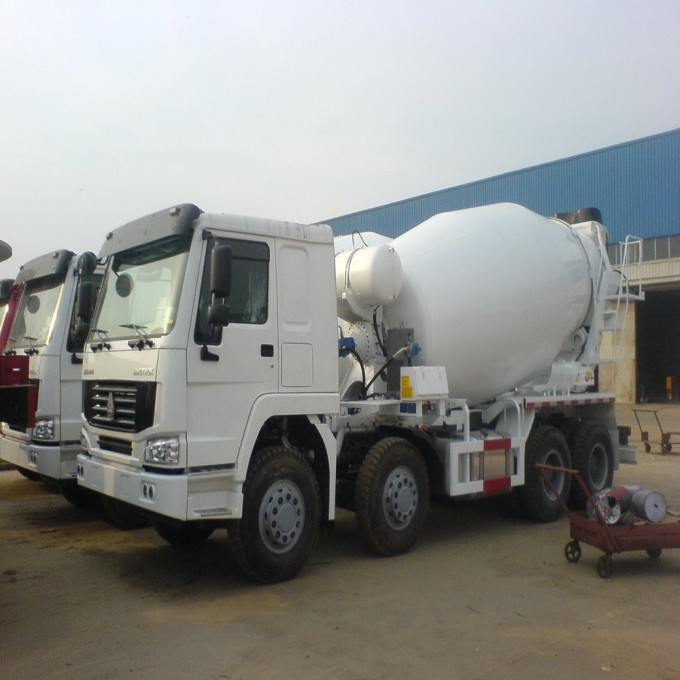

Product Image
