XCMG Hot Sale 9m3 Concrete Mixer Truck Price

XCMG Hot Sale 9m3 Concrete Mixer Truck price

[Product Parameter]
99m³technical parameter

	Model	Unit	XZJ5251GJB1
	Chassis brand
Total vehicle	Chassis Modrl		ZZ1257N3847C
	Curb Weight	kg	14000
	Max.total weight	kg	25000
	Driving type		6*4
	Wheelbase	mm	3625+1350
	Tire		12.00-20
	Ways df power take-off		Flywheel
	Outline dimension	(**)mm	9300*2500*3890
Engine	Model		WD615.95E
	Max.power	Kw/r/min	247
	Output	L	9726
	Emission standard		china
Mixing drum performance	Geometric volume	M³	15.6
	Agitating volume	M³	9
	Max.diameter of inner drum	mm	2360
	Mixing drum lenght	mm	5060
	Slanting angle	.	13.5
	Rotating speed	r/min	0-14
	Feeding speed	M³/min	≥3
	Discharge speed	M³/min	≥2
	Discharge remnant percentage	%	<1
	Slump range	cm	5-21
Hydraulic system	Oil pump		90(),100()Rexroth 90 motor(optional),Sauer 100 motor(optional)
			ACA542337R0B00MAD000000030D00000B()Eaton
	Motor		80(),100()Rexroth 80 motor(optional),Sauer 100 motor(optional)
			HHD543321BB1B1K1K00000B()Eaton
	Reducer		577(),PMB6.5SP()Bonfiglioli557(optional),PMB6.5SP(optional)
	Hydraulic circuit		Closed
Water supply	Water tank		450
	Way of water supply		Air pssure type

99m³technical parameter

	Model	Unit	XZJ5251GJB2
	Chassis brand
Total vehicle	Chassis Modrl		ZX5255GJBJR364
	Curb Weight	kg	14000
	Max.total weight	kg	25000
	Driving type		6*4
	Wheelbase	mm	3575+1400
	Tire		12.00-20
	Ways df power take-off		Flywheel
	Outline dimension	(**)mm	9300*2500*3890
Engine	Model		WP10.336
	Max.power	Kw/r/min	247
	Output	L	9726
	Emission standard		china
Mixing drum performance	Geometric volume	M³	15.6
	Agitating volume	M³	9
	Max.diameter of inner drum	mm	2360
	Mixing drum lenght	mm	5060
	Slanting angle	.	13.5
	Rotating speed	r/min	0-14
	Feeding speed	M³/min	≥3
	Discharge speed	M³/min	≥2
	Discharge remnant percentage	%	<1
	Slump range	cm	5-21
Hydraulic system	Oil pump		90(),100()Rexroth 90 motor(optional),Sauer 100 motor(optional)
			ACA542337R0B00MAD000000030D00000B()Eaton
	Motor		80(),100()Rexroth 80 motor(optional),Sauer 100 motor(optional)
			HHD543321BB1B1K1K00000B()Eaton
	Reducer		577(),PMB6.5SP()Bonfiglioli557(optional),PMB6.5SP(optional)
	Hydraulic circuit		Closed
Water supply	Water tank		450
	Way of water supply		Air pssure type

99m³technical parameter

	Model	Unit	NXG5250KGJB3
	Chassis brand
Total vehicle	Chassis Modrl		NXG3250D3KCLX
	Curb Weight	kg	14620
	Max.total weight	kg	24995
	Driving type		6*4
	Wheelbase	mm	4000+1350
	Tire		12.00-20
	Ways df power take-off		Flywheel
	Outline dimension	(**)mm	9370*2500*3900
Engine	Model		WP10.336N
	Max.power	Kw/r/min	247
	Output	L	9726
	Emission standard		china
Mixing drum performance	Geometric volume	M³	15.6
	Agitating volume	M³	9
	Max.diameter of inner drum	mm	2360
	Mixing drum lenght	mm	5060
	Slanting angle	.	13.5
	Rotating speed	r/min	0-14
	Feeding speed	M³/min	≥3
	Discharge speed	M³/min	≥2
	Discharge remnant percentage	%	<1
	Slump range	cm	5-21
Hydraulic system	Oil pump		90(),100()Rexroth 90 motor(optional),Sauer 100 motor(optional)
			ACA542337R0B00MAD000000030D00000B()Eaton
	Motor		80(),100()Rexroth 80 motor(optional),Sauer 100 motor(optional)
			HHD543321BB1B1K1K00000B()Eaton
	Reducer		577(),PMB6.5SP()Bonfiglioli557(optional),PMB6.5SP(optional)
	Hydraulic circuit		Closed
Water supply	Water tank		450
	Way of water supply		Air pssure type

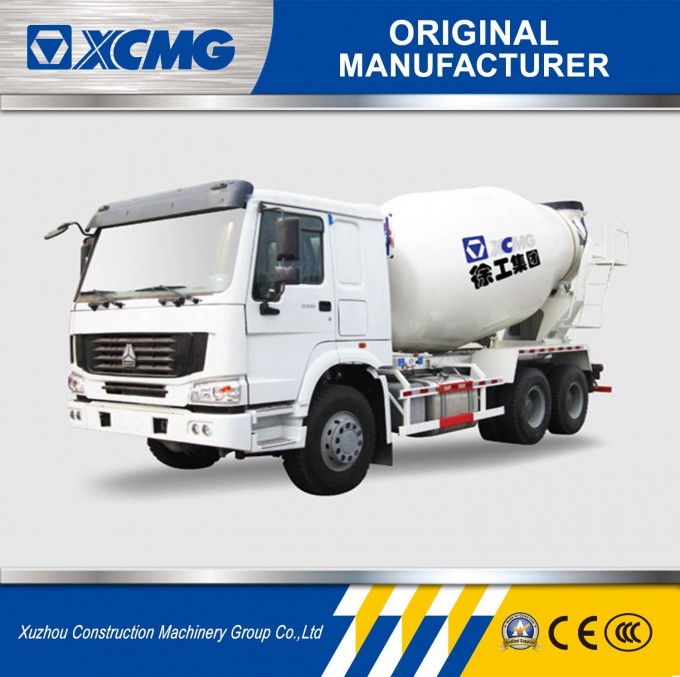

[Product Picture]


[Company Information]
XCMG was born in 1943 as an arsenal workshop during the War Against Japanese Aggression and has ahistory of 72 years.The group was incorporated in 1989, and has kept its leading position in Chinese construction machinery industry for 26 years.If you want know more about us, you can also visit our web site: http://www.xcmg.com/en-mena/.

According to KHL's Yellow Table, XCMG ranks No.8 in the world construction machinery industry in 2014.According to the rank of Top50 Summit of World Construction Machinery Industry, XCMG ranks No.5 in the world.

At psent, XCMG is alarge state-owned international corporation with the most complete range of products and over 30,000 employees operating in China, America, Germany, Netherlands, Poland, India, Brazil and Uzbekistan.

The goal of XCMG is to become aleading world-class enterprise with great value creativity.
