Detailed Description
| The specification of the Electric Pedicab: |
| Motor type: | 48V 1000W brushlessmotor |
| Battery type: | 12V 20AhLead-acid battery*4 |
| Controller: | 48V 1000W brushless controller |
| Steering fork | shoulders type damper front fork |
| Damper(rear): | drum spring damper(rear) |
| Brake: | disc(hydraulic manual control) |
| Max. braking distance: | 4m |
| Loading capacity: | 300kg |
| Climbing capacity: | 20% |
| Parking capacity: | 20% |
| Max. speed: | 25km/h |
| Driving distance: | 85km (with pedal driving) |
| Vehicle size: | 3100*1100*1850mm |
| Tire size: | 2.75-18 |
| Wheel base: | 2500mm |
| wheel interval: | 1040mm |
| Front light: | LED energy saving double headlights |
| Meter: | 3 LCD digital meters, indicating lights, speed, power |
| Gear system: | 21 gears (front 3x rear 7) |
| Net weight | 200 kgs |
| Container loading | 4 pcs for 20GP |

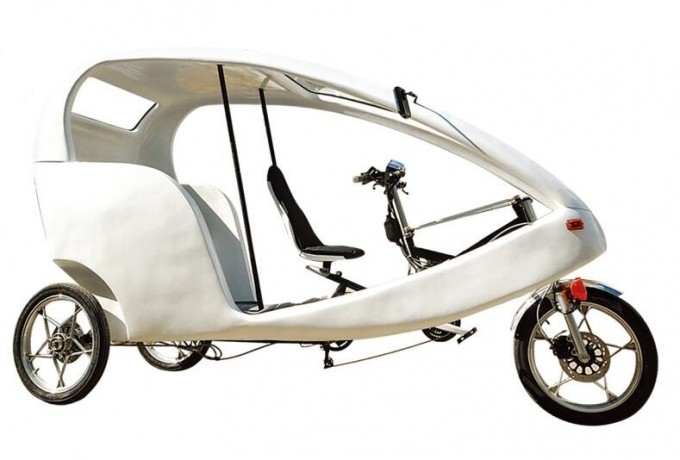

Jobo Electric Pedicab is aGerman designed tricycle which are suitable to tourist rent ,e bike city taxi ,makes alot of funny and both driver and passengers will enjoy the leasure during the whole trip.
Possible for pedaling ,pure electric driving or pedaling with PAS ,friendly use design and eco environment
21 speed gear(3 front*7 rear),Change gears with thumb shifter on the handbar ,and turn the throttle to acceleratethe speed.
Instrument panel on handlebar indicating battery volume ,speed ,light status and total distance runned .
With front light ,turning light and braking light for both day and night driving
Suspension for both front and rear make driving comfortable and enjoyable
Comfortable seats for driver and passenger
Front and rear brake achive much safer driving .
We can install safety belts for passenger, USB outlet, MP3 player extra if you need.
Lead-acid battery for standard configuration,lithium battery for option which is much
lighter and providing longer service time
