Detailed Description
New Self Loading Mobile Co
ncrete Mixer dispenser Hydraulic Diesel Truck 4x4 for sale
self loading co
ncrete mixer agitating truck price
1.5 3.85 CBM mini co
ncrete dispenser china supplierHY-150 SELF LOADING Co
nCRETE MIXER
Features&Advantages
Mobile co
ncrete mixerfeature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiencyCapacity:8-10 cubic meters per hour Labor-saving4 WD Loading,pumping,mixing,delivering and dischargeUltimate tank capacity technologycan discharge with different angles by chute.The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%.Loading capacity is larger for the same volume.The center of gravity is low for the same loading capacity.High-strength wear-resistant applicationzTank and blades are made of high-strength wear-resistant steel,with service life increased by 30%.Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%.New exterior stylingOverall machine features attractive appearance,smooth stream line,perfect streamlined hopper,arc-shaped rear support,and full steel catwalk,giving more attractive design to provided you a new experience.Efficient hydraulic drive system .As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions.Four-dimensional mixing technology.Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%.Unique continuous trace design is used,with residual rate≤0.4%.Large gliding angle is designed at rear cone,to ensure fast discharge at idle speed.Safe and flexible operation systemLongitudinal resistance-free design is used,to provided more flexible manipulation.Front and rear linkage double-limit structure is used,to provide higher safety.Convenient water supply systemIntegrated control is used with one-inlet and multiple-outlet applied,convenient and fast.Liner water tank structure is used with service life increased by 50%.Cabin:Front cab on side of loading shovelROPS-FOPS type complete wit double closing door,camera,air conditioning,available upon RequestJoystick:All hydraulic functions of shovel controlled by a single joystick.Loading shovel:effective capacity per loading complete with hydraulic opening gate with bigger blade.Working table controlled by microcomputer, water temperature, oil temperature, current are all insightAdjustable seat, convenient and comfortable to us
| Name | Item | Specification |
| Net | 8300 KG |
| Gross | 12675KG |
| Transmission | Full Hydraulic |
| 4WD |
| Brake | Air Brake |
| Chassis | Off-road |
| Tread | 1880 |
| Wheelbase | 2250mm |
| Loader bucket | capacity | 0.6m3 |
| Control | Hydraulic |
| Tilt angle | 30% | |
| Speed | High | 0-25KM/H |
| Low | 0-9KM/H |
| Mini turning radius | 6.5M/R |
| Tyre model | 16/70-20 |
| Engine | Type | Yuchai | 4108 |
| Rated Power/RPM | 85KW/2200RPM/125HP 2200RPM |
| Max.Torque/RPM | 460N.M/1400RPM |
| Cylinder | 4 |
| Starter | Electric |
| Cooling type | water cooling |
Maxing Drum | Drum capacity | 3.85M3 |
| Bank Angle | 16 ° |
| Rotation Angle | 17-21R/min
|
| Chute | Swing Angle | ≥60° |
| Angle control | Hydraulic |
| Size | Long:176cm |
| Short:40cm |
| Loader | Weighing model | computer control |
| Concrete Standard | C15.C20.C25 C30 |
| Accuracy | concrete | ≤±2%/time |
| Relative Error | ≤±3%/time |
| water | ≤±1%/time |
| Additive | ≤±1%/time |
| Admixture | ≤±2%/time |
| Control | One hydraulic 4 way stick |
| Overall size | 7500*2700*3380mm |
| Name |
Item |
Specification |
| Net | 5430 KG |
| Transmission | Full Hydraulic |
| 4 WD |
| Brake | Air Brake |
| Chassis | Off-road |
| Loader bucket | capacity | 0.4m3 |
| Control | Hydraulic |
| Tilt angle | 20% | |
| Speed | High | 0-25KM/H |
| Low | 0-9KM/H |
| Mini turning radius | 4.5M/R |
| Engine | Type | Yunnei | |
| Rated Power/RPM | 55KW/2200RPM |
| Max.Torque/RPM | 360N.M/1400RPM |
| Cylinder | 4 |
| Starter | Electric |
| Cooling type | water cooling |
Maxing Drum | Drum capacity | 1.5M3 |
| Bank Angle | 16 ° |
| Chute | Swing Angle | ≥50° |
| Angle control | Hydraulic |
| Loader control | Hydraulic 4 way stick |
| Over size | 6180x2430x2626mm |
DAWINMachineryis acompany specializing in the research, design and production of construction machinery for nearly 20 years. We provide the most reasonable solution according to the special demand from different customers. Our main products for construction machinery are as follows: Concrete mixer, concrete batching plant, diesel concrete mixer, concrete pump, sand so on. With several researching and producing bases in China, we can provide the powerful technical service and upper quality machinery for the clients all over the world.
We take care of your order!
1. Best manufacturer in North China.
2. Afactory with over 20 years' experience.
3. Professional teamwork of every process.
4. Competitive price and perfect quality.
5. Efficient after-sale service.
DAWIN Machinery Answers:
Q:How many kinds of auto mobile mixer truckyou have?
A:1.5 cubic meter and 3.85 cubic meter for flexible job sites works.
Q:Do you haveconcrete placing boomsthat could be working together with concrete pump?
A:Yes, We have below series.
1: 13/15/17m Manual Mechanical Spider Concrete Placing Booms
2: 13/15/17Mobile Hydraulic Spider Concrete Placing Booms
3: 29/33m Floor Climbing Type and Elevator Well Shaft Climbing Concrete Placing Booms (Tubular Column)
4: 21/24/28/32 Elevator Well Shaft Climbing Concrete Placing Booms (Mast Section)
Q:What is the configuration?
A:For exporting, most of the components are world famous top brands such asLOVOL, DEUTZ, Siemens, Rexroth, Kawasaki, Schneider, Omron, LG, Eaton, Manuli, Parker etc. The configuration could be customized according to client's requirements.
Q:Is engineer available for training and after sales service?
A:Yes, our oversea engineers team are standing by for oversea service. Some engineers could speak English.
After-sale Service
1.May enjoy the life-long service after you buy our products.
2.Training the operator for free.
3.Under the condition that foundation, water source, power source, aggregate, hosting
Equipment, auxiliary staff is ready. Engineers are available if you need.
4.Certain quantity stochastic tool will be provided while delivering goods.
5.Within 48 hours service will be available according to different regions after received
The telephone.
6.For exported products, Our company sends the constructor to help to operate and
Management equipment, time according to your needs. The related fee will be undertaken
By buyers.
7.promptly provides the fittings according to users' demands, handles for the user consigns
For shipment.
8.All products (easy worn parts not included) loss caused by non-human factors will be
Free of charge for half ayear.
9.Provides the technology advisory service as necessary.
10.Please contact me via telephone when you have any problems with the plant.
Dear Customer:
Welcome to our website and hope our Auto mobile concrete self feeding mixer truckwill make you satisfied. We think creatively, design bravely, manufacture pcisely and loyalty to our customers. And we have our own factory. So We can produce the products, according to customer requirements.
Enjoy DAWIN Machinery Enjoy Better Life!
Yours sincerely
Dawin Machinery

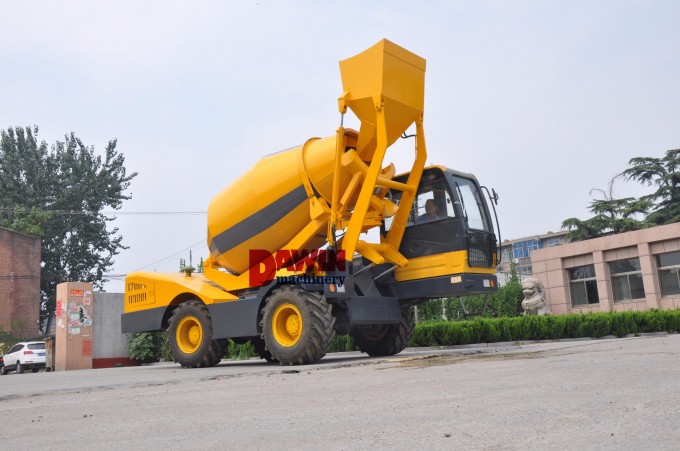

Product Image
