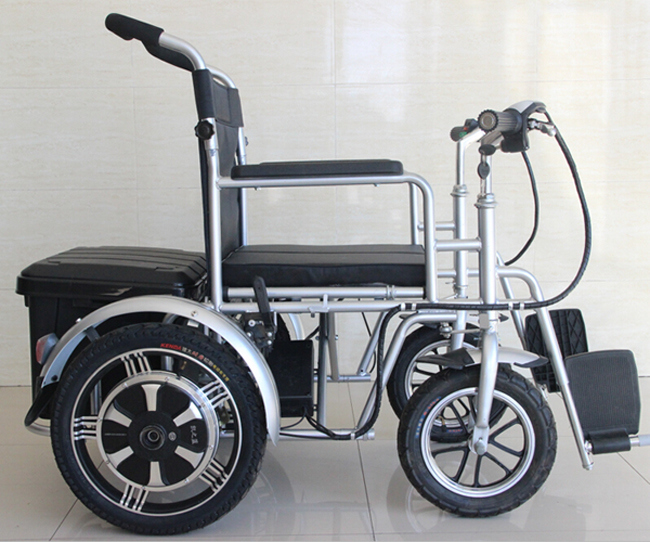

Electric Four Wheel Scooter Mobility Scooter (FP-EMS01)

Electric four wheel scooter mobility scooter

Model:FP-EMS01
Specification:

frame: steel with painting frame, as picture

With front plastic foot plate


Seat Cushion: comfortable folding seat cushion with black canvas cover


Wheel: F/12" aluminum alloy one-piece wheel, R/ 16" aluminum alloy one-piece wheel with motor

Motor: 36V 350W, fixed on rear& right hub

Battery: Tianneng 36V 12AH lithium battery.

The battery is put into this rear PVC trunk.


Brake: rear expanding brake, special for this mobility scooter, hand brake(park brake)

Tire: F/ Kenda 12"*2.125 black tire, butyl rubber tube

R/ Kenda 16"*2.125 black tire, butyl rubber tube

With black PVC trunk ( you can put anything in it. It's very convenient.)

Function:

1. Product Dimension: 1260*830*970mm (L*W*H)

2. Net weight include battery: 35KGS

3. Packing dimension: 1090*390*950mm

4.Diameter of front wheel: 305mm

5.Diameter of rear wheel: 610mm

6. Capacity loading (include rider): ≤ 80KGS

7. Voltage of battery: 36V

8. Motor rated power: ≤500W

9. Max. speed: ≤ 12km/h

10.Brake performance: ≤ 3m

11.Gradeability: ≤15°

12.Distance per charge: ≥ 20km

13.Min turning radius: 2 m

14.Slope stability: 25°

15.The vehicle static load: 160 kgs

16.Power consumption: 2 kwh

17. 65pcs/20'GP, 165pcs/40'HQ
