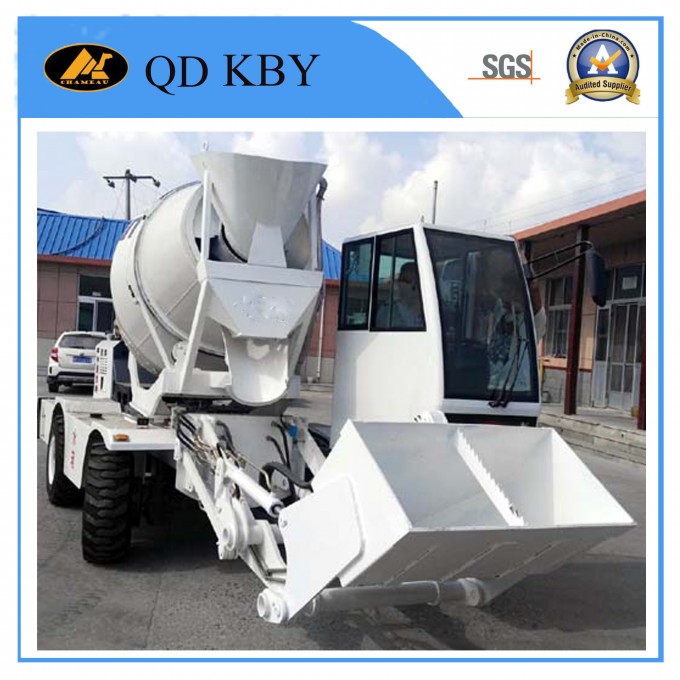

1.6m3 Auto Self Loading Concrete Mixer Truck

Features:
Self Propelled Concrete Mixing System
Easy operating control
Highefficiency
Mixer and Loader joint together perfectly
6 monthswarranty
Twodirections 270 degree discharge Angle




Parameters:

DIESEL ENGINEModel:YN27GBZ
Total displacement, no Cylinders:2700cc-4 in line
Injection: direct with mechanical control
Cooling: water, dry air filter
Max. power: 78Kw(75Hp)
Max. torque: 237Nm@2000rpm

ELECTRIC SYSTEMAlternator: 28V--500Wa (18A)
Battery: 2×12V--60AH (272A)
Road light system, rear working lights.

STEERINGTwo steering wheels, Assisted by means of load-sensing power steering on 2 steering wheels.

4X4 FOUR-WHEEL DRIVEhydraulic torque converter transmission with open Gear oil pump and reverse gear control on the steering wheel.
Electro-hydraulically controlled mechanical gearbox for "working speed" and "road transfer speed".
Speed:2 forward gears 2 reverse gears
Ist 0 - 7.0 Km/h 0 - 7.0 Km/h
IInd 7-20 Km/h 7 - 20 Km/h

AXLES AND WHEELSFront wheel is steering with planetary reduction gears on the Isuzu Axle with flanged gearbox.
Rear axle is oscillating(± 28°)with planetary reduction gears.
Tires: ... 12-16.5-12PR,Max. L: AD2540kg, 450kPa RIM:9.75

BRAKESInternal wheel hubdisc service and emergency brakes acting on the 4 wheels, activation with mini servo pump on independent dual circuit.
Negative type parking brake, with internal wheel hub discs on the front axle.

WATER SYSTEM24V "Self-priming" volumetric water pump with quick-suction.
Max. capacity: ............................90 liters/min.
Twotank with a total capacity of ......................2*230 liters.
Water feeding to the drum controlled by means of electromagnetic flow meter and feed liter reading on the cabin display. Water pump activation from the driver's seat.
Washing vehicles outside by water blast gun via high pssure water pump.

MIXING AND UNLOADINGDouble-cone drum with double-spiral mixing screws and convex bottom.
Geometrical drum volume: ............. 2900 liters
Drum rotation speed: .........................15 rpm.
Concrete produced as : ........1.6m³
Counter frame mounted on "heavy-duty" ball fifth wheel, with 270° hydraulic rotation and automatic locking by means of hydraulic brake. Drum rotation by means of a gear pump with variable flow rate and an orbital hydraulic motor in open circuit with adjustable handle control manually positioned in the cabin and at the rear of the machine.
Drum raising up to the horizontal position by means of 2 double-acting jacks.
Unloading chute with mechanical tilting by means of one handle controlled and 180° rotation, independent from the mixing drum inclination.
Removable chute if unloading from hopper.
2 unloading chute extensions provided as standard equipment.

EQUIPMENT HYDRAULIC SYSTEMGear pump: DEHONG (brand)
Max. flow rate: ............................. 20/50 liters/min.
Maximum pssure: ........................16MPa
3-Handles controlled with multi-function joystick.
Aluminum heat exchanger for hydraulic oil cooling.
Pressurized open-circuit intake with oil filter replaceable from the outside.

LOADERAuto weighting function, Loading device with Teeth bucket and lifting arms controlled by double-acting hydraulic cylinders. Automatic unloading hatch driven by a mechanical lever.
Volumetric capacity: ...........................270 liters
Number of loading times: .......... around 7

CABClosed cab with heating system,
Tilting front window, Anatomic seat with flexible suspension and height adjustment,

SERVICE REFILL CAPACITIESFuel tank: .............................................100liters
Total hydraulic system capacity: ........ 100 liters
Engine oil: .............................................16 liters

WEIGHTSOperating weight ................................ 5,500 kg
Max gross weight:..............................8,700 kg
load-carrying capacity: .......................... 3,200 kg

DIMENSIonSLength ×Width ×Height .........................5650 ×2210 ×2580 mm
