Detailed Description

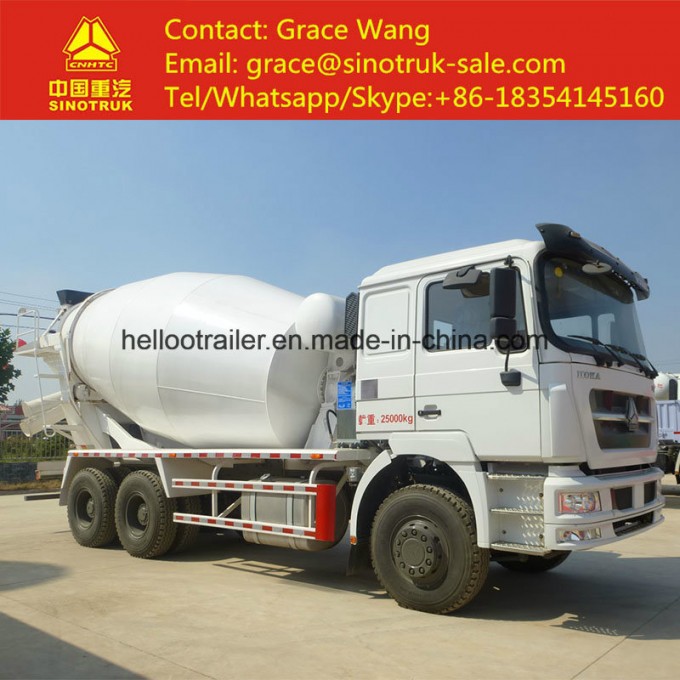

HOWO Cement Transport 6*4 Co
ncrete Mixer Truck (Left hand drive)
1. 4x2, 6x4, 8x4 truck chassis (optional)
2. 6- 16m3 loading capacity (optional)
3. American brand Eaton pump and engine;
Italy brand Bo
nfiglioli Reduction box
Technical parameters
| Model | ZZ1257M3241 |
| Drive type | 6x4, RHD |
| Engine | WD615.62 |
| Rated power | 266 HP |
| Emission standard | EURO II |
| Loading capacity | 6 m3 |
| Others | American brand Eaton pump and engine;
Italy brand Bonfiglioli Reduction box |
| Cab | HW76, sleeper with A/C |
| Tyres xQuantity | 11.00R22.5 tubless tyres x11 pcs (one spare tyre) |
| Steering | ZF8118 |
| Transmission | HW15710 |
| Front axle | HF9 |
| Rear axle | 16/27 ° |
| Traction type | 6X4 |
| Driving type | Light hand driving |
| Cabin | A7-W, flat roof cabin, one sleeper with air conditioner,MP5 radio,air suspension of the seat |
| standard configurations | adjustable steering wheel,heater,spare tire,auxiliary brake,electronically flameout |
Engine
| D12.38 | vertical/in-line/four stroke/four cylinder/water cooling/supercharged intercooler |
| Displacement(L) | 11.596/Diesel |
| Power(hp) | 380 |
| Emission | EURO IV |
| Fuel tanker(L) | 400 iron |
| Clutch | Model | 430 diaphragm |
| Gearbox | Model | HW19710 |
| Steering system | Model | ZF8118 |
| Axles | Front | HR9 disc |
| Rear | HC16 double reduction, ratio:5.73 |
| Tyre | 12.00R20 |
| Number of tires | 12+1 spare tire |
| Suspension | More leaf spring on front and rear axles |
| Parameter |
| Max.speed | 80 |
| Kerb mass (kg) | 16500 |
| Gross mass (kg) | 25000 |
| Wheel base (mm) | 1950+3625+1350 |
| Appproach Angle | 20 |
| Departure Angle | 24 |
| Front overhang(mm) | 1540 |
| Rear overhang(mm) | 2570 |
| Front track(mm) | 2022 |
| Rear track(mm) | 2041 |
| Capacity of tanker(m3) | 14 |
| Stirred tank Configuration | Italy TOP/P90 reducer/090A pump/motor |
| Overall dimension (Lx WxH mm) | 11035×2496×3980 |
Packaging &Shipping
1. Package: Nude and waxed by bulk cargo ship or Ro-Ro ship or flet deck.
We use best transportation solution to save your sea freight cost.
2. Delivery time: 30 days after deposit
