Detailed Description
Public Stair Climber rubber track with the size of 60 * 13.8 * 114 or as you like.
This product is designed by our factory and approved by test.
This kind of rubber track classis is ideal for HDD drilling rig, robot, rotating drill, excavator, crawler core drilling rig and etc.
Rubber track features:
1. Less destroy for land
2. Low noise
3. Run rapidly and shock slightly
4. Low pssure for land
| Rubber Tracks Specification |
| Type:PY-50A | Type:PY-50B | Type:PY-60A | Type:PY-60B |
| link No.54 | link No.46 | link No.66 | link No.50 |
| Pitch:19mm | Pitch:20mm | Pitch:12.7mm | Pitch:18.5mm |
| Width:50mm | Width:50mm | Width:60mm | Width:60mm |
| Total length:1026mm | Total length:920mm | Total length:838.2mm | Total length:925mm |
| Weight:0.5Kg | Weight:0.5Kg | Weight:1.2Kg | Weight:0.44Kg |
| | | |
| Type:PY-76 | Type:PY-80 | Type:PY-85 | Type:PY-100A |
| link No.120 | link No.108 | link No.24 | link No.50 |
| Pitch:12.7mm | Pitch:15mm | Pitch:59.4mm | Pitch:40mm |
| Width:76mm | Width:80mm | Width:85mm | Width:100mm |
| Total length:1524mm | Total length:1620mm | Total length:1425.6mm | Total length:2000mm |
| Weight:1.92Kg | Weight:1.2Kg | Weight:1.92Kg | Weight:4Kg |
| | | |
| Type:PY-100B | Type:PY-110 | Type:PY-115 | Type:PY-118A |
| link No.76 | link No.32 | link No.32 | link No.18 |
| Pitch:20mm | Pitch:42mm | Pitch:65mm | Pitch:61mm |
| Width:100mm | Width:110mm | Width:115mm | Width:118mm |
| Total length:1520mm | Total length:1344mm | Total length:2080mm | Total length:1098mm |
| Weight:1.84Kg | Weight:2.12Kg | Weight:Kg | Weight:2.32Kg |
| | | |
| Type:PY-118B | Type:PY-118C | Type:PY-123 | Type:PY-130 |
| link No.20 | link No.24 | link No.60 | link No.28 |
| Pitch:60mm | Pitch:61mm | Pitch:40mm | Pitch:72mm |
| Width:118mm | Width:118mm | Width:123mm | Width:130mm |
| Total length:1200mm | Total length:1464mm | Total length:2400mm | Total length:2016mm |
| Weight:2.44Kg | Weight:3.9Kg | Weight:8Kg | Weight:11.2Kg |
| | | |
| Type:PY-135 | Type:PY-136 | Type:PY-140 | Type:PY-148 |
| link No.72 | link No.41 | link No.24 | link No.36 |
| Pitch:18.5mm | Pitch:45mm | Pitch:80mm | Pitch:60mm |
| Width:135mm | Width:136mm | Width:140mm | Width:148mm |
| Total length:1332mm | Total length:1845mm | Total length:1920mm | Total length:2160mm |
| Weight:1.66Kg | Weight:3.56Kg | Weight:5Kg | Weight:16Kg |
| | | |
| Type:PY-150 | Type:PY-180 | Type:PY-200 | Type:PY-255A |
| link No.22 | link No.42 | link No.60 | link No.30 |
| Pitch:63.4mm | Pitch:65mm | Pitch:61.5mm | Pitch:72mm |
| Width:150mm | Width:180mm | Width:200mm | Width:255mm |
| Total length:1394.8mm | Total length:2730mm | Total length:3690mm | Total length:2160mm |
| Weight:3.6Kg | | Weight:20Kg | Weight:12Kg |
| | | |
| Type:PY-255B | Type:PY-300 | Type:PY-320 | Type:PY-350 |
| link No.35 | link No.58 | link No.33 | link No.53 |
| Pitch:65mm | Pitch:109mm | Pitch:87mm | Pitch:100mm |
| Width:255mm | Width:300mm | Width:320mm | Width:350mm |
| Total length:2275mm | Total length:6322mm | Total length:2871mm | Total length:5300mm |
| Weight:10Kg | | Weight:22Kg | |
| | | |
| Type:PY-382 | Type:PY-400 | Type:PY-420 | Type:PY-500 |
| link No.54 | link No.46 | link No.58 | link No.48 |
| Pitch:64mm | Pitch:90mm | Pitch:100mm | Pitch:63.5mm |
| Width:382mm | Width:400mm | Width:420mm | Width:500mm |
| Total length:3456mm | Total length:4140mm | Total length:5800mm | Total length:3048mm |
| Weight:29Kg | | | Weight:43.2Kg |

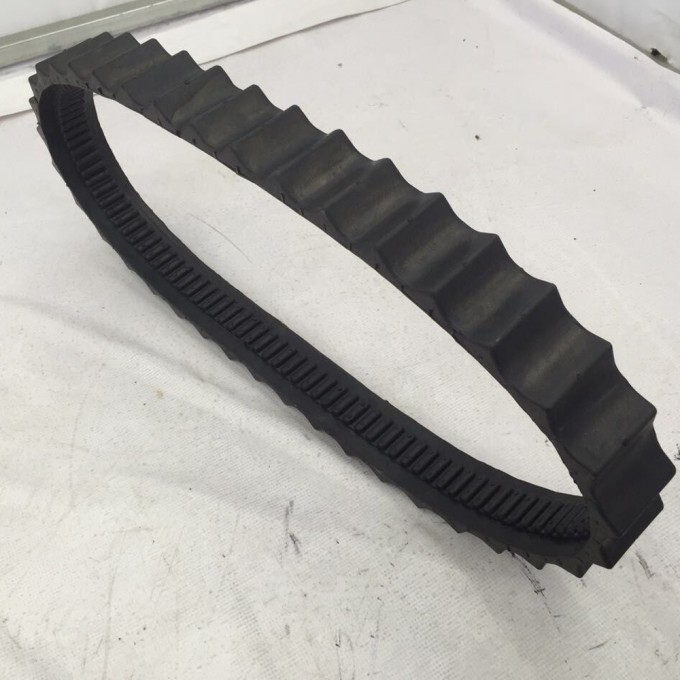

Product Image
