Introduction ofConcrete Mixer Truck
Concrete mixer truck is specially used to transport buildings concrete.It iswidely used to transport and mix concrete up to the construction site, such as skyscraper construction, bridge construction,high way construction and so on.During the transportation process, the mixing drum will always be kept rotating to ensure that all the carrying concrete will not be solidified. In order to pvent the residual concrete from hardening and the space and volume of the stirring cylinder from occupying, the inside of the stirring cylinder is usually rinsed with water after transportation.Due to different size of the drum, the concrete mixer truck can be divided into different models from3cbm to20cbm.
FeaturesofConcrete Mixer Truck
1.Mixing drum and blades are made by superior wear-resistant steel plate
2.Painting Process: Shot peening disposal process for rust protection.
3.Large rotary tooling is used in tank connecting and blade welding with high pcision.
4.imported components are used in hydraulic systems with compact structure and outstanding performance.
5.Compact and reasonable structure makes beautiful exterior.
6.Operating system is flexible and convenient with high efficiency.
7.Special mold stamping technique is adopted on the mixing drum and blades.
TechnicalParametersofConcrete Mixer Truck
| Truck Model | JYC5250GJBSX4 |
| Chassis Model | SX5256GJBDR404 |
| Outer Dimension(mm) | 9900,9400*2500*4000 |
| Wheel base(mm) | 3775+1400;3975+1400 |
| Front/Rear Tread(mm) | 2036;1860/1860 |
| G.V.W(kg) | 25000 |
| Rated Weight(kg) | 10420,10355 |
| Curb Weight(kg) | 14450 |
| Cab Passengers | 2-3persons |
| Approach/Departure Angle(°) | 20/18,20/19 |
| Front/Rear Overhang(mm) | 1525/3000,1525/2700 |
| Max.Speed(Km/h) | 77 |
| Axle Numbers | 3 |
| Axle Load(kg) | 7000/18000 Tandem Axle |
| Number of leaf springs | 10-12 |
| Engine Model | WP10.336E40,WP12.336E40,WP12.375E40,ISM11E4 345,ISM11E4385 |
| Power(kw) | 247,247,276,250,280 |
| Power(Hp) | 247,247,276,250,280 |
| Fuel Consumption | 37.08,37.21,37.33,37.01,37.21 |
| Emission Standard | Euro 4 |
| Tyre | 11.00-20 18PR,11.00R20 16PR,12.00-20 16PR,12.00R20 14PR |
| Tyre Numbers | 12 |
| Mixing Capacity(m2) | 4.29 |

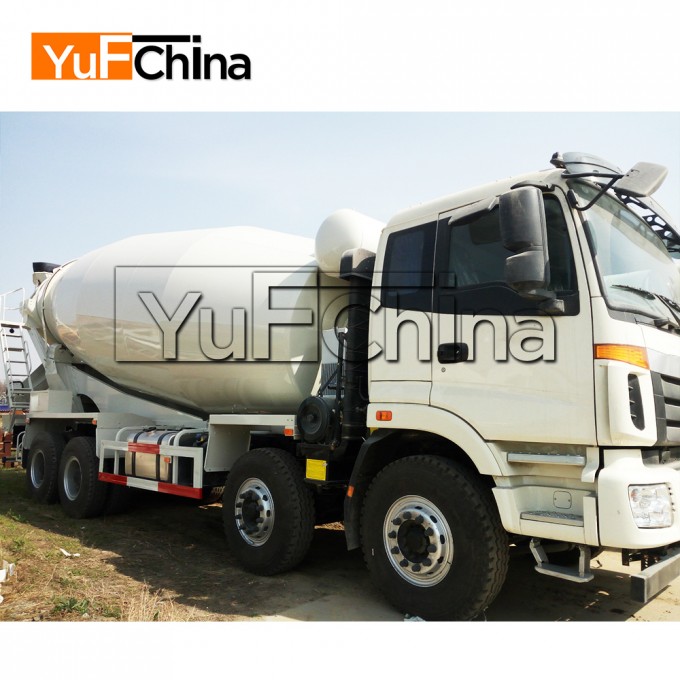

Detail Pictures of Concrete Mixer Truck
ContactInformationofConcrete Mixer Truck
We can design machines according to customers' need.If you want to learn more information,please contact usat any time.
