| Model | ZZ1257M3641 | Steering | ZF8098 |
| Engine | Brand SINOTRUK | Gross Vehicle Weight | 25000kg |
| WD615.47 | Curb Weight | 14420kg | |
| Maximum Output | 371HP | Tyres | 12.00R20 |
| Rated engine power (KW/r/min) | 213/2200 | Cab | HOWO76 |
| Air-condition | |||
| Transmission | HW15710 | Maximum Speed | 90 km/h |
| Front Axle | HF9 | Geometric volume M3 | 14.5 |
| Max. loading: 9000kg | Agitating capacity | 9 | |
| Rear Axle | HC16 Ratio: 5.73 | Discharging remain ration | < 0.2 |
| Max. loading: 16000kg | |||
| Overall Dimension (mm) | 8222*2496*3848 | ||

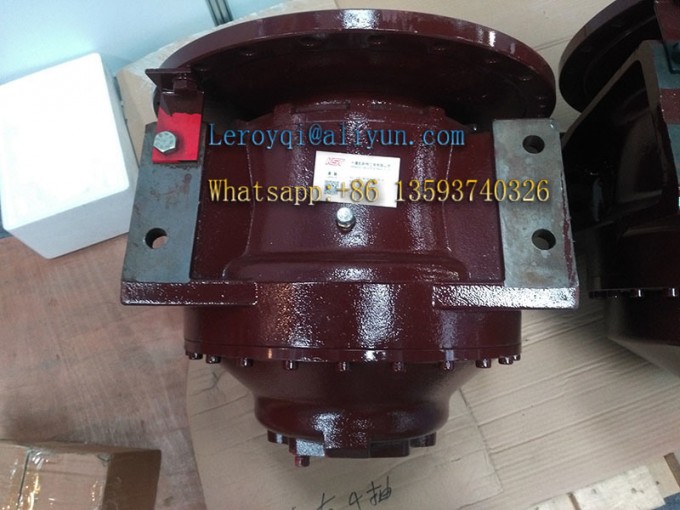

| Specification Model | FK130B | FK230B | FK330B | FK530B | FK730B |
| Output Torque | 30000NM | 36000NM | 42000NM | 60000NM | 72000NM |
| Drum angle | 15 | 15 | 15 | 15 | 15 |
| Mixer Volume | 3-5 cbm | 6 cbm | 7-8cbm | 10cbm | 12cbm |
| Reduction ration | 103 | 103 | 141 | 135.5 | 144.3 |
| Input | 2500RPM | 2500RPM | 2500RPM | 2500RPM | 2500RPM |
| Radial load | 85KN | 95KN | 112KN | 160KN | 190KN |
| Axle load | 35KN | 35KN | 44KN | 50KN | 58KN |
| Weight | 160KG | 170KG | 242KG | 340KG | 350KG |
| Lubricating oil | 5.5L | 5.5L | 7.5L | 11.5L | 11.5L |
| Flange angle | 6 | 6 | 6 | 6 | 6 |
| Gear oil | SAE85W-90 | SAE85W-90 | SAE85W-90 | SAE85W-90 | SAE85W-90 |
| Rated torque | 25000NM | 30900NM | - | - | - |
Drive Axle
The driving axle adveloped by Dongfeng consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching Dongfeng various series vehicles.
Cab
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion pvention and weather resistance, increasing the effective more than 2times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China ,comphensively enhancing the safety.
