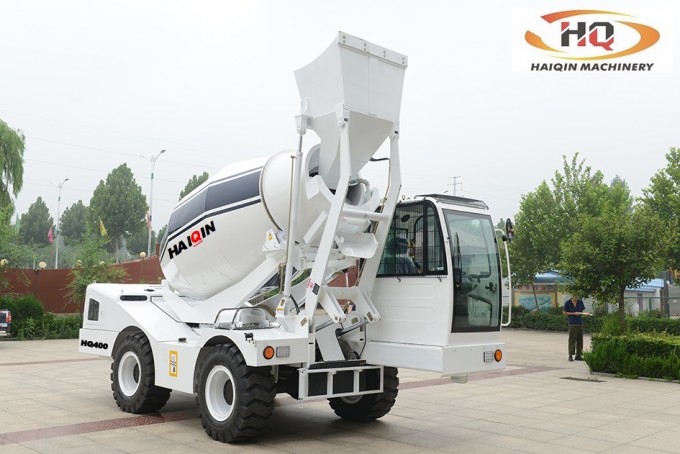

Haiqin Brand Self Loading Mobile Concrete Mixer Truck (HQ400) for Sale

1,Mobile Concrete Mixer Truck (HQ400) Product Description :

Haiqin Brand Self-loading concrete mixer truck is the combination of concrete mixer truck and cement mixer,
which can automatically feed, measure, mix and discharge concrete mixture. Equipped with
a powerful engine and 2 wheel steering, the self loading concrete mixer is just like a
small car and the operator can drive it to where it needs to go. It is very convenient
for loading material, such as cement, aggregate, stone. The raw material is scattered in
the construction site. With self loading mixer machine, you will never to worry about
transporting raw material.

The efficient self loading mixer concrete machine just need one operator to drive, load,
and mix raw material while moving it. It has a higher working efficiency, higher mixing
effect. At the same time, it greatly reduces the labor cost and working time. The self
loading concretemixers can bring you great benefits. Compared with concrete mobile mixer, the self
loader mobile cement mixer truck.



2, Mobile Concrete Mixer Truck (HQ400)Features :

1) The self mixing concrete truck can automatic feeding, measuring, mixing and
dischargingconcrete.
2) The self loading mixer for sale has easy operation, high working efficiency, high
mixing effect.
3) It has independent water supply system, which can ensure the high quality of
concrete.
4) It just need one operator to drive, load, and mix raw material while moving it.


3,Mobile Concrete Mixer Truck (HQ400) Specifications :

Drum capacity	5.5m³
Concrete output	4m³.
Loading ratio	76%
Rotary drum	Discharge mouth height 1.8 meters.Level turn 300 ° (options)
Production capacity	4 batches in an hour.16 cubic meters per hour
ENGINE	YTO 85KW or Yuchai 95KWor Cummins for option
transmission way	Full hydraulic drive.4 wheel drive and 2 turns.All the power comes from hydraulic oil, including walking 4X4.
Climbing ability	30%
speed	Low speed 0-25 km/h, high speed 0-45 km/h.
CAB	Ultra wide deluxe cab.ROPStype.
hydraulic system	Open feed, two gear pump participate in action.
joystick	A four-way hydraulic pilot with an electric control button controls the bucket.
bucket	650L, hydraulic gate.
chute	Equipped with two removable shaft pins to increase the discharge length.
Water supply system	Self-priming hydraulic drive pump/electronic water flow monitor/high pssure washer (optional).
brake	inner wheel brake and the emergency brake operate on 4 wheels, enabling the small servo pump on the independent double-return road.Negative pssure type stop brake, the front bridge is equipped with inner hub.
Turn	Hydraulic steering, rear wheel steering.
tyre	16/70-20 wire tires
power system	24V
OIL TANK/water tank	2 x210L water tank.Dieseltank: 125 litres.Hydraulic tank: 130 litres.
weight	7600KG
L*W*H	7500MM*2700MM*3380MM
wheelbase	2.35M
metering	Electronic weighing system (optional).

4, Packing and shipping :
With Professional workers special for packing and shipping .


5, More details testing and working photos :
